Microtech
MODULAR computerized micrometer up to 10m meters Wireless+USB
MODULAR computerized micrometer up to 10m meters Wireless+USB
Couldn't load pickup availability
SKU:110160155

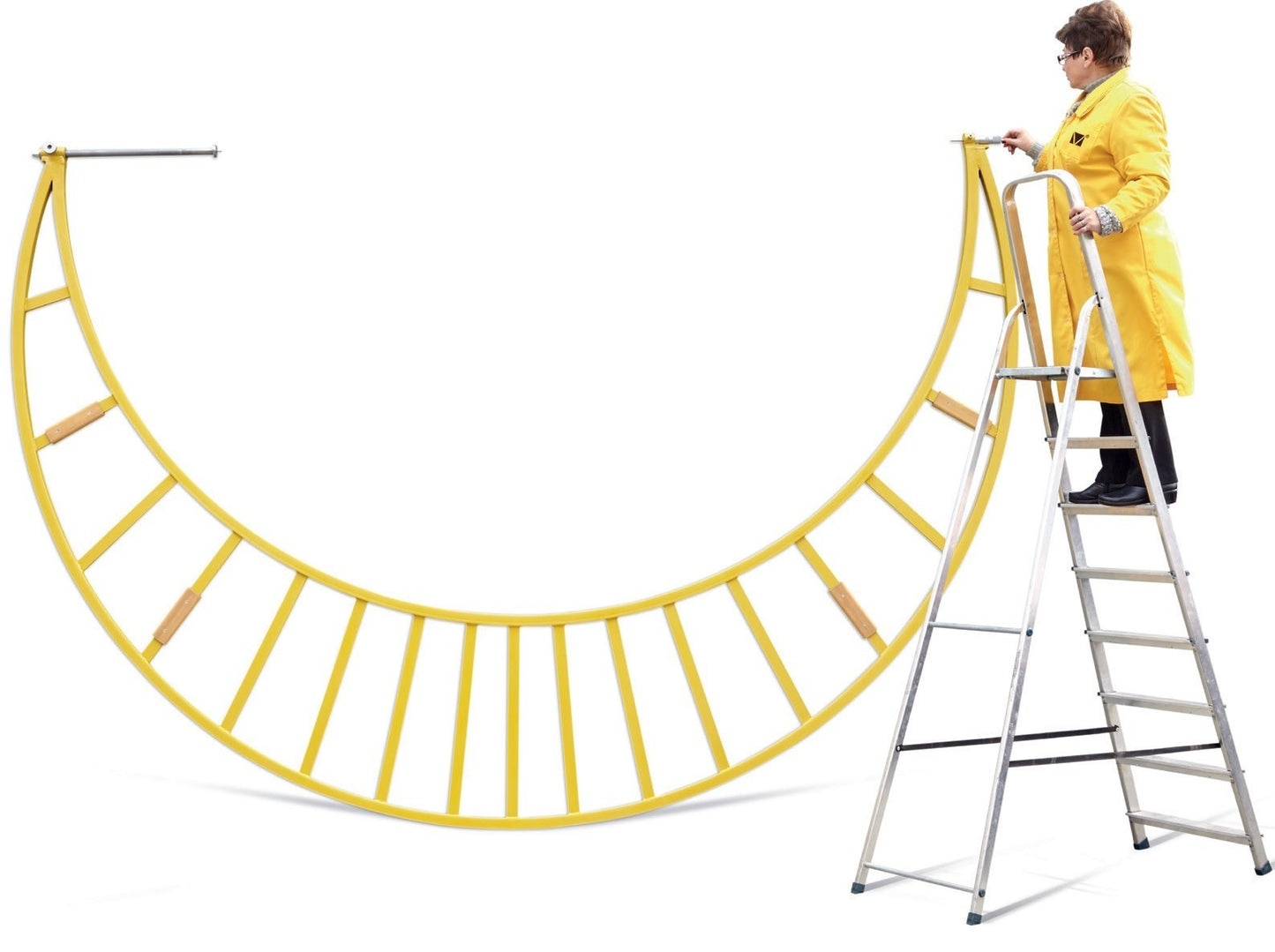

MICROTECH MODULAR Wide-Range Precision COMPUTERIZED Micrometers.
Up to 10 meter capacity! With wide travel ranges per set to save money.
May be disassembled for safer, easier, and economical transportation.
IP65 Ingress Protection.
Sub-Micron Resolution.
Hand finished measuring screw and carbide anvil faces.
Friction thimble with constant measuring force.
Setting Rods included.

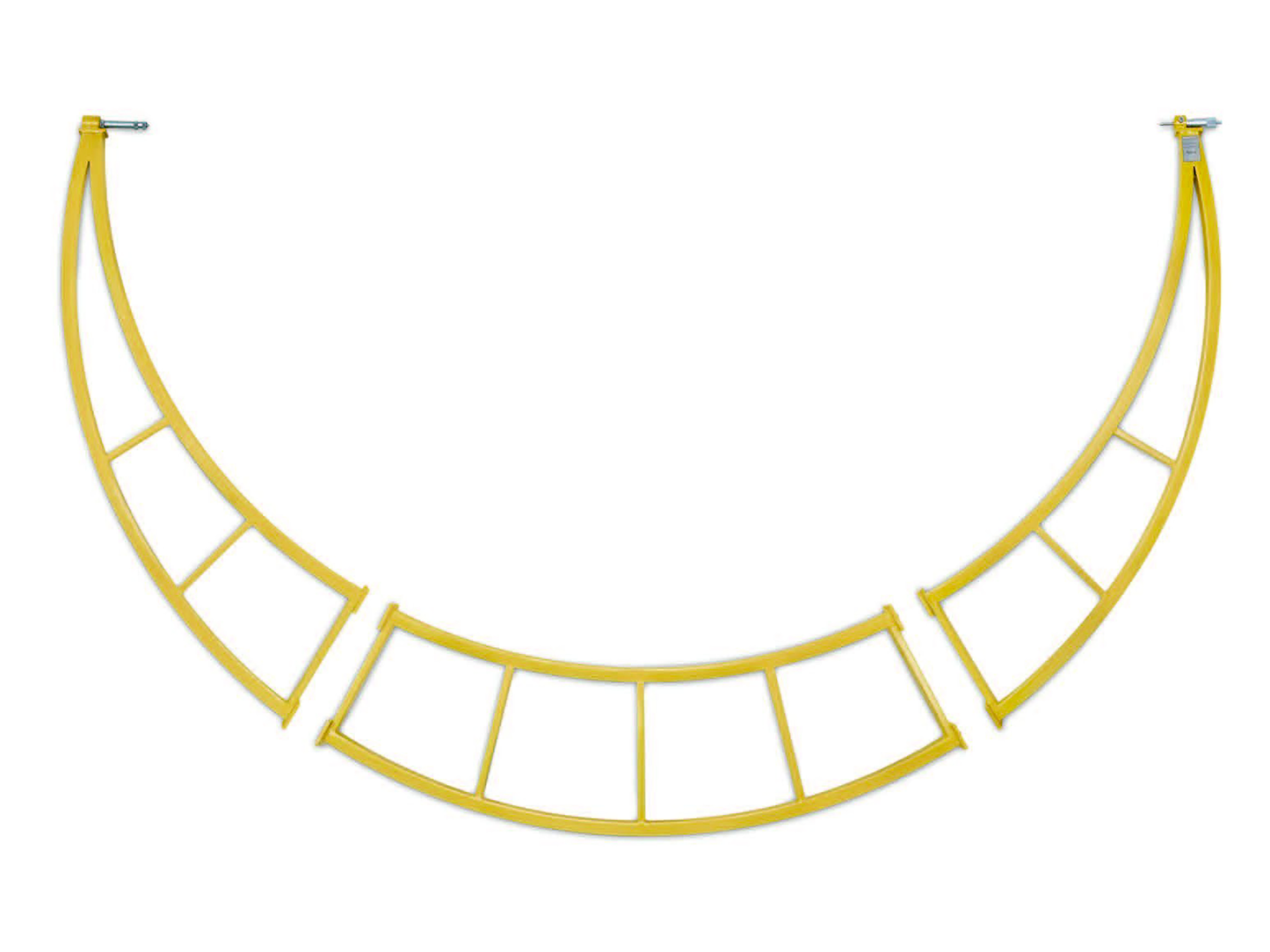

The components (modules) are fastened together using 2 (two) flanges, each of which has 4 (four) bolts with quick-release nuts.
The bolt-nut connection takes about 1 (one) minute to complete, so the total time to assemble the snap gauge of the modular micrometer is:
– For 3000 mm range about 16-20 minutes;
– For 4000 mm range about 25-30 minutes;
– For 5000 mm range about 40-50 minutes;
– For 6000 mm range about 50-60 minutes
• Patent UA 99688, UA103981, UA126926, UA108044, UA112291, UA116231 by MICROTECH
Computerized MICS measuring system has such functions as:
– internal memory with statistic mode
– Color Go/NoGo indication (limits)
– Peak function (Min/Max)
– Timer (reading to memory or data transfer)
– Formula – calculation indicator Ax2+Bx+C
– Resolution selection (0,1 / 1/ 10 microns)
– mm/inch selection
– Temperature compensation
– Mathematical error compensation
– Wireless data transfer to Windows, iOS, Android devices
– USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
– Built in rechargeable Li-Pol battery with magnetic charger
– Color hi-res display 1,54 inch with Touchscreen.
All MICROTECH micrometers pass metrological control in an ISO 17025 accredited laboratory (Ilac) with calibration protocol.
Microtech offers a wide variety of micrometers for many applications. From extremely large sizes, to specialized tips and more. Reach out with your specific inquiry and they may have a ready solution for your need!
SHIPPING - Popular Microtech items are held in US stock, however MOST items are imported in bi-monthly bulk shipments. After which they are split up and shipped out to customers. Therefore it may take 2-4wks to receive your Microtech item. If an item is on back-order then we will contact you. Otherwise please be patient and we will provide domestic tracking info as soon as we can. When in doubt, use our Contact Us form to ask questions.
