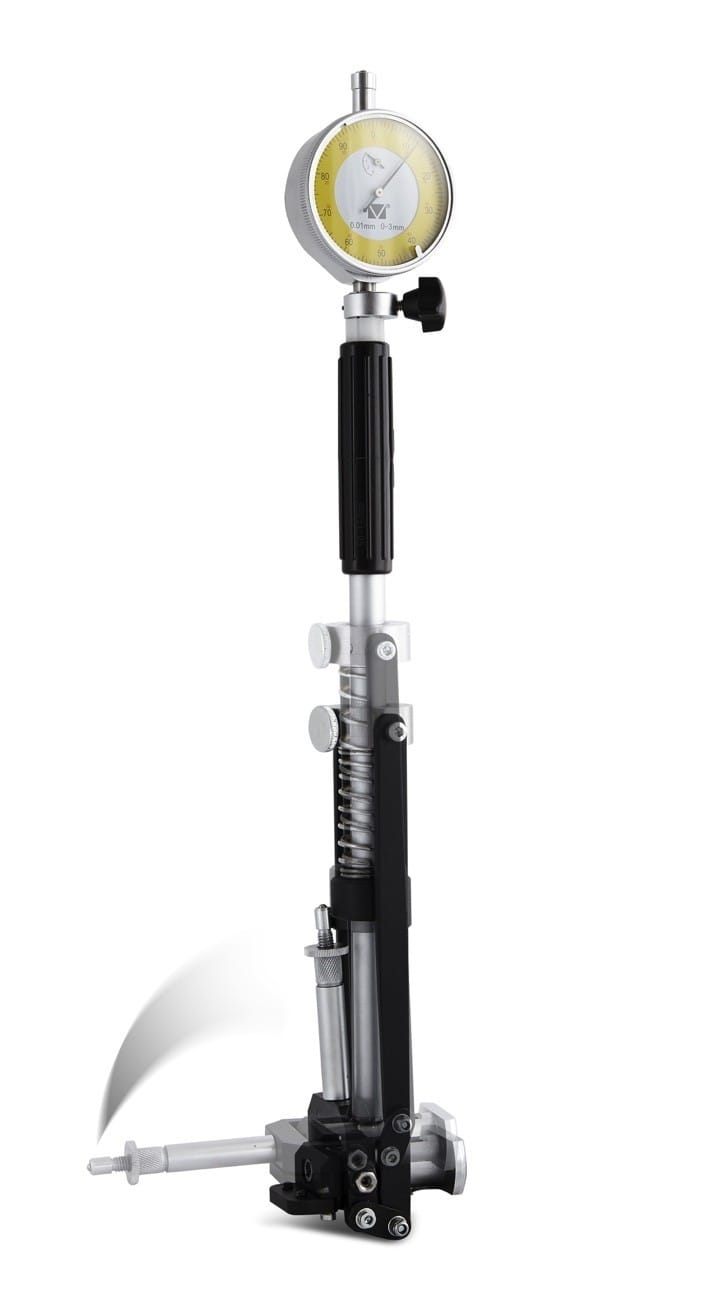

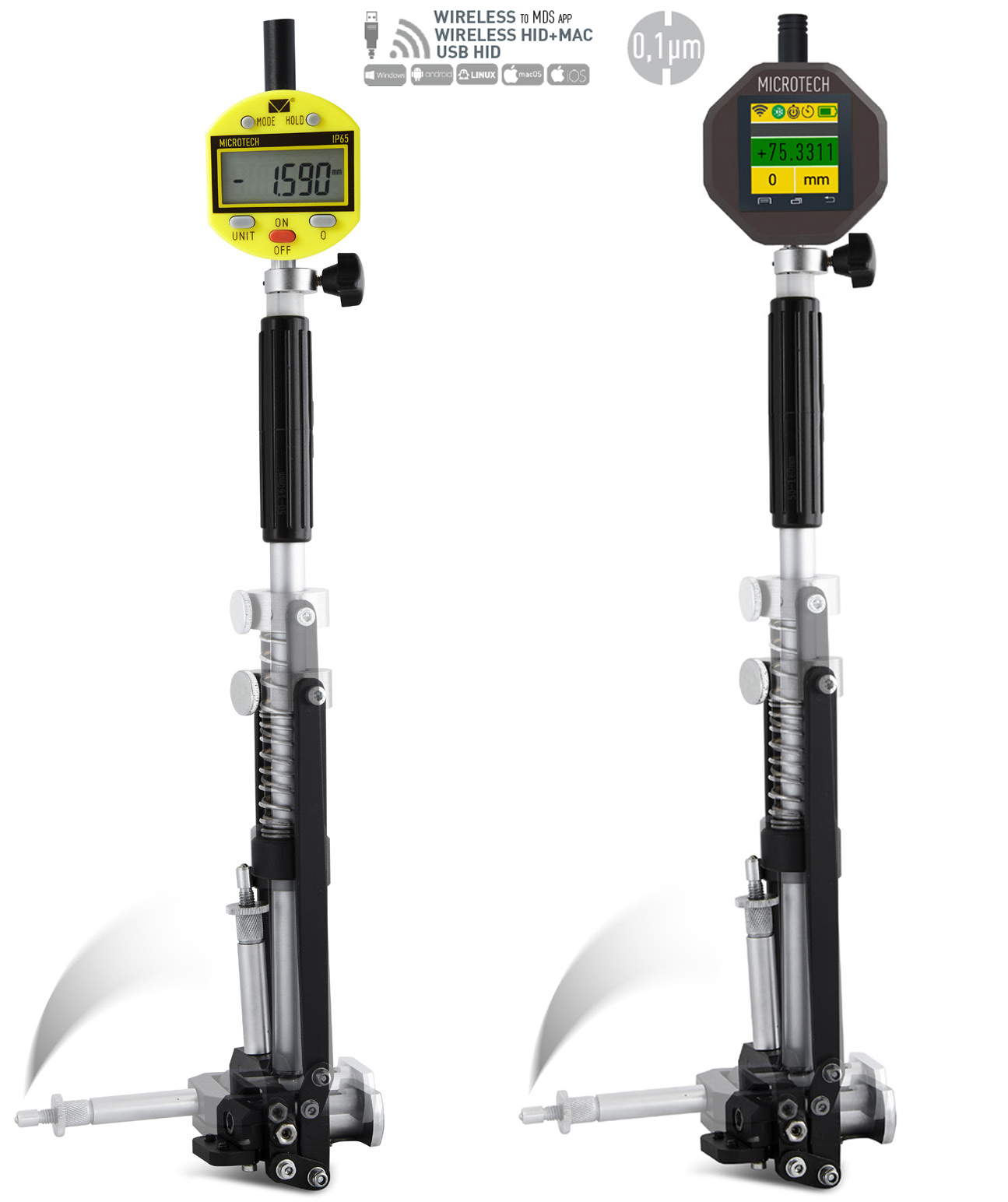

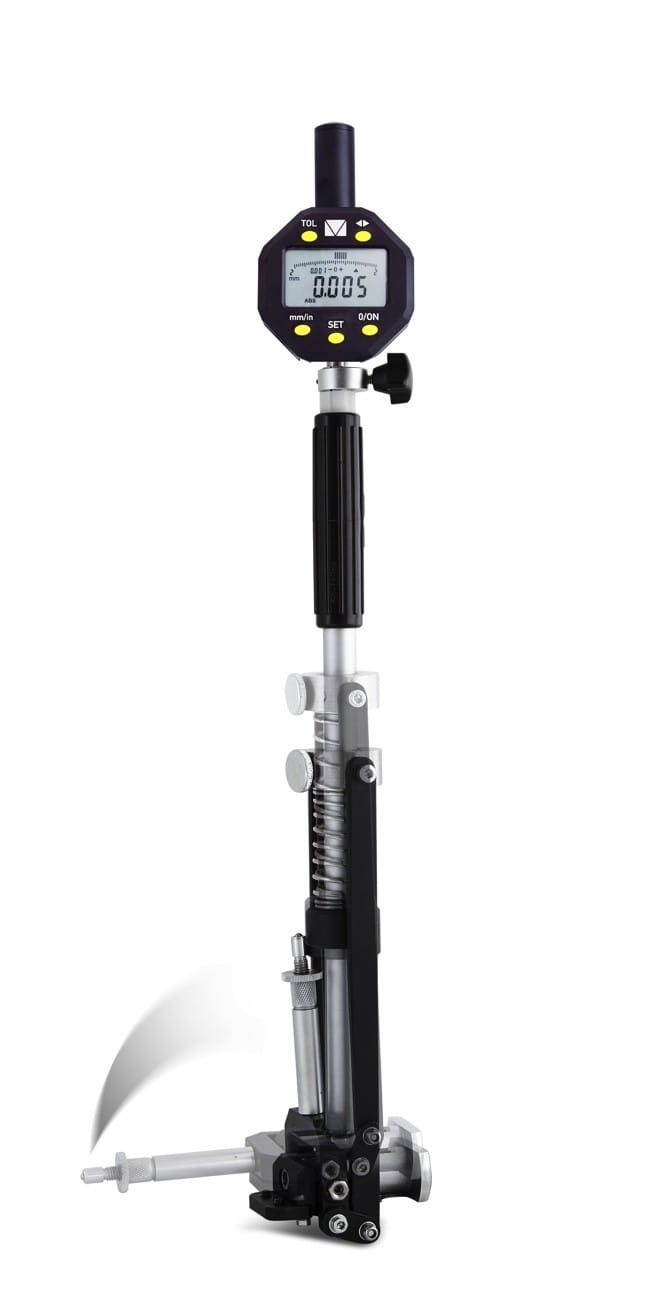

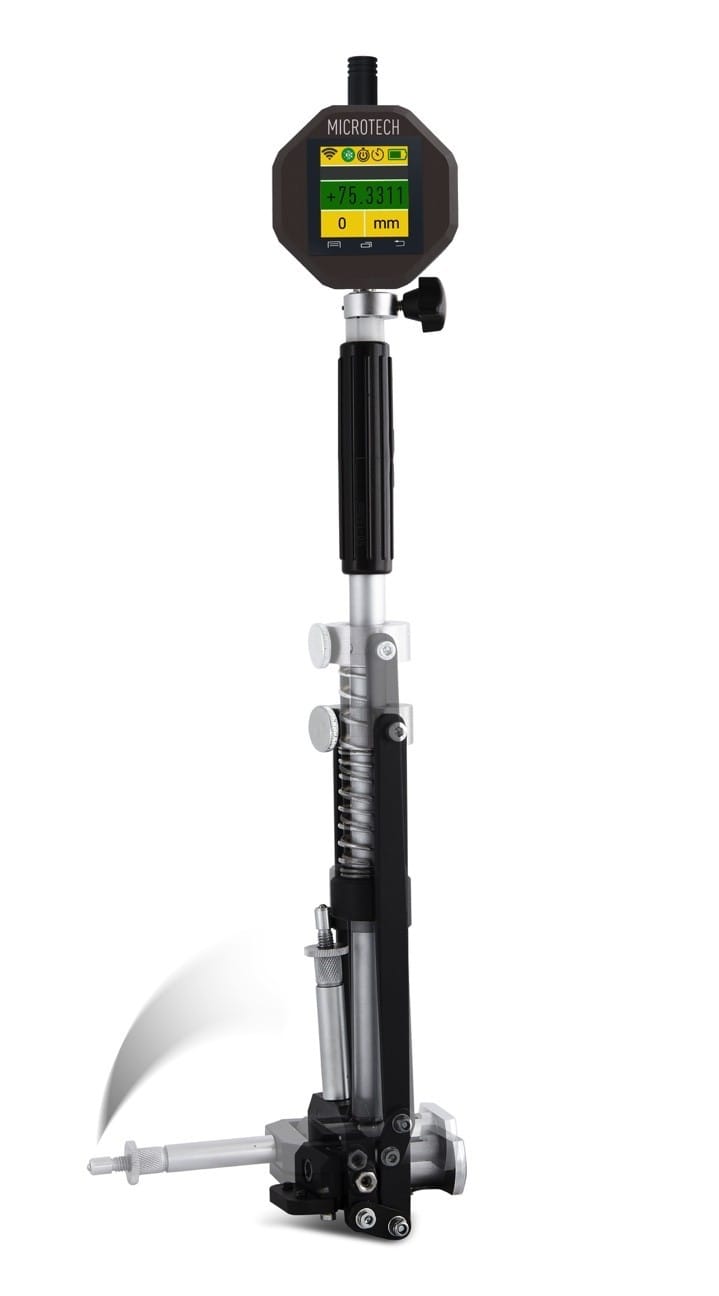

DataMet RETRACTABLE Leg Bore Gauge - Sub-Micron - Carbide Tips - IP54

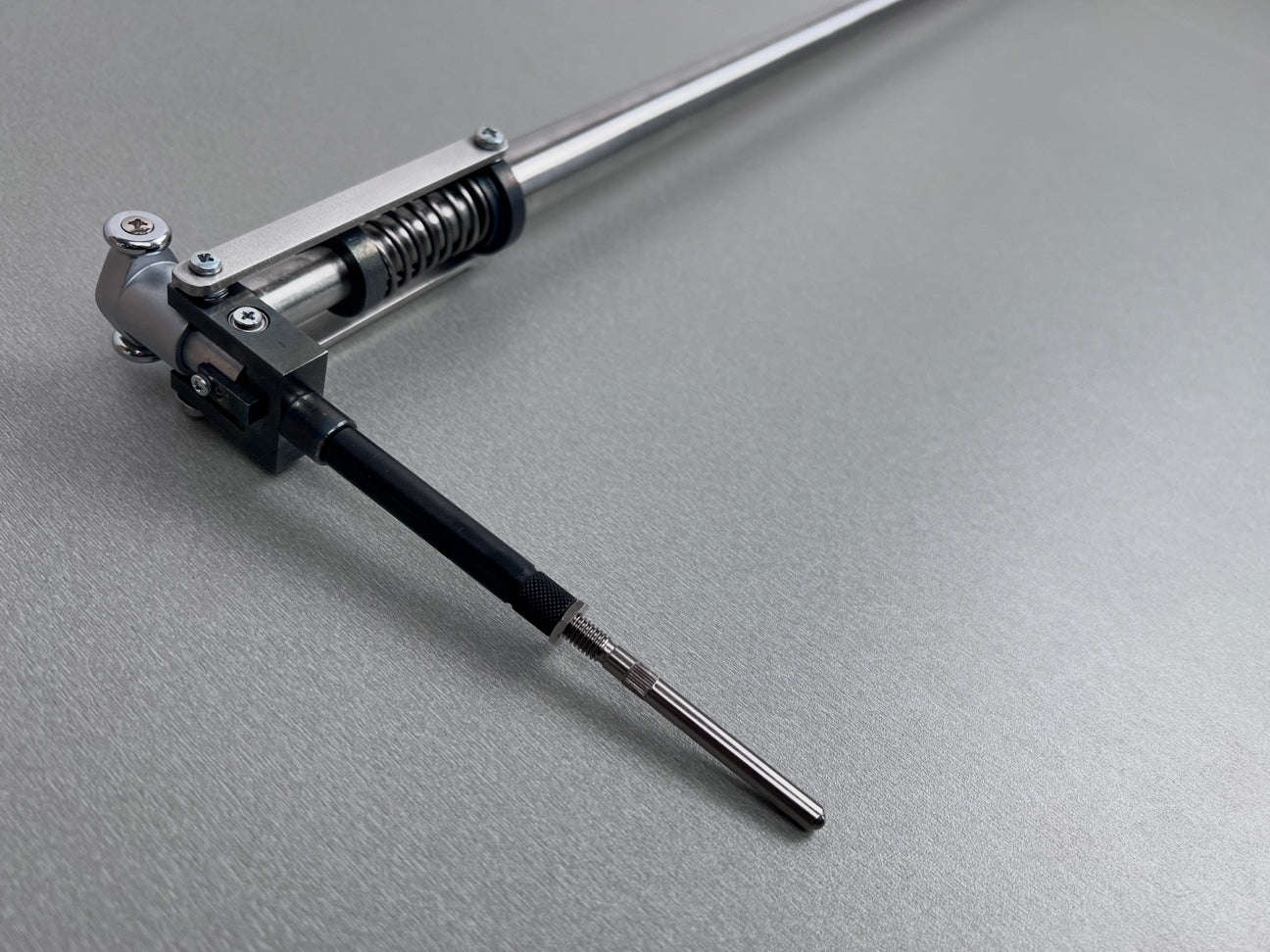

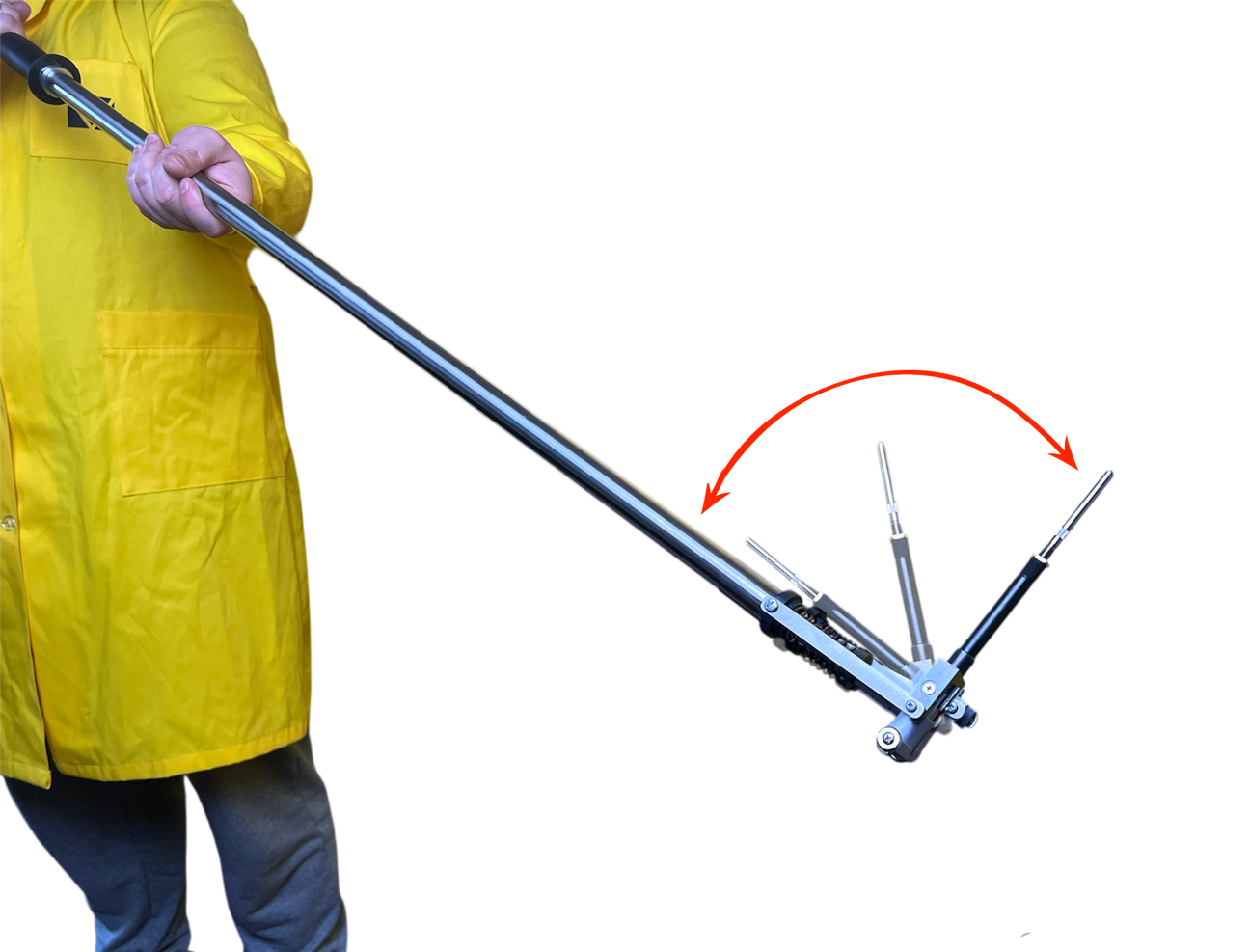

"DataMet" RETRACTABLE folding anvil leg permits you to pass the bore gauge into interior cavities and grooves. Please see drawings to ensure the gauge will function inside your cavity/rib height and width. Feel free to contact us about your specific application.

MICROTECH digital (COMPUTERIZED) bore gauges with measuring range up to 450mm (0-18 inch) and with depth up to 3000 mm (0-120 inch).

Bore gauge has sub-micron resolution, IP54 proof electronic indicator.

MICROTECH digital 2 point bore gauges equipped with CARBIDE pins for long life.

Computerized MICS measuring system internal micrometer has updated hi-res 1,54 inch screen and such functions:

– internal memory with statistic mode
– Color Go/NoGo indication (limits)
– Peak function (Min/Max)
– Timer (reading to memory or data transfer)
– Formula – calculation indicator Ax2+Bx+C
– Resolution selection (0,1 / 1/ 10 microns)
-mm/inch selection
– Temperature compensation
– Mathematical error compensation
– Wireless data transfer to Windows, iOS, Android devices
– USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
– Built in rechargeable  Li-Pol battery with magnetic charger
– Color hi-res display 1,44 inch with Touchscreen.

Gauges are available in various depth options. See separate listing for Sets, Analog, or Digital variants. Microtech also manufactures extreme depth & diameter variants as well as "Retractable/Foldable" leg option (for inside cavities), bore scope camera, and specialized gunsmithing bore gauges.

All MICROTECH Electronic bore gauges pass metrological control in an ISO 17025 accredited laboratory (Ilac) and supplied with calibration protocol

It’s possible to manufacture any range and depth of gauge per customers request. Many ranges and depths are available for inquiry.
