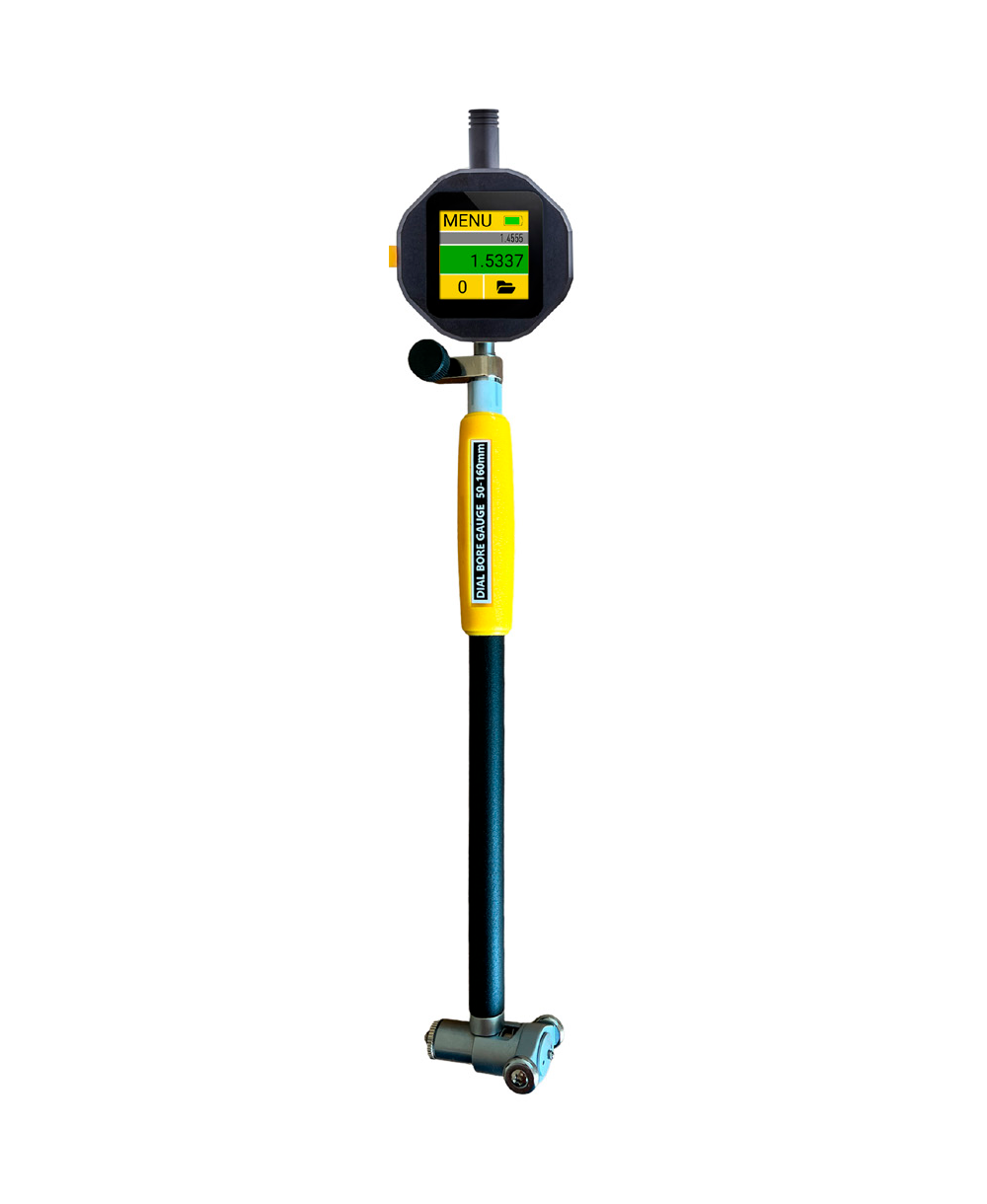

Precision Digital Bore Gauge - COMPUTERIZED - Sub-Micron - Carbide Tips - IP54

MICROTECH digital (COMPUTERIZED) bore gauges with measuring range up to 1500mm (0-60 inch) and with depth up to 2000 mm (0-80 inch).

Bore gauge has sub-micron resolution, IP54 proof electronic indicator.

MICROTECH digital 2 point bore gauges equipped with CARBIDE pins for long life.

Computerized MICS measuring system internal micrometer has updated hi-res 1,54 inch screen and such functions:

– internal memory with statistic mode
– Color Go/NoGo indication (limits)
– Peak function (Min/Max)
– Timer (reading to memory or data transfer)
– Formula – calculation indicator Ax2+Bx+C
– Resolution selection (0,1 / 1/ 10 microns)
-mm/inch selection
– Temperature compensation
– Mathematical error compensation
– Wireless data transfer to Windows, iOS, Android devices
– USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
– Built in rechargeable  Li-Pol battery with magnetic charger
– Color hi-res display 1,44 inch with Touchscreen.

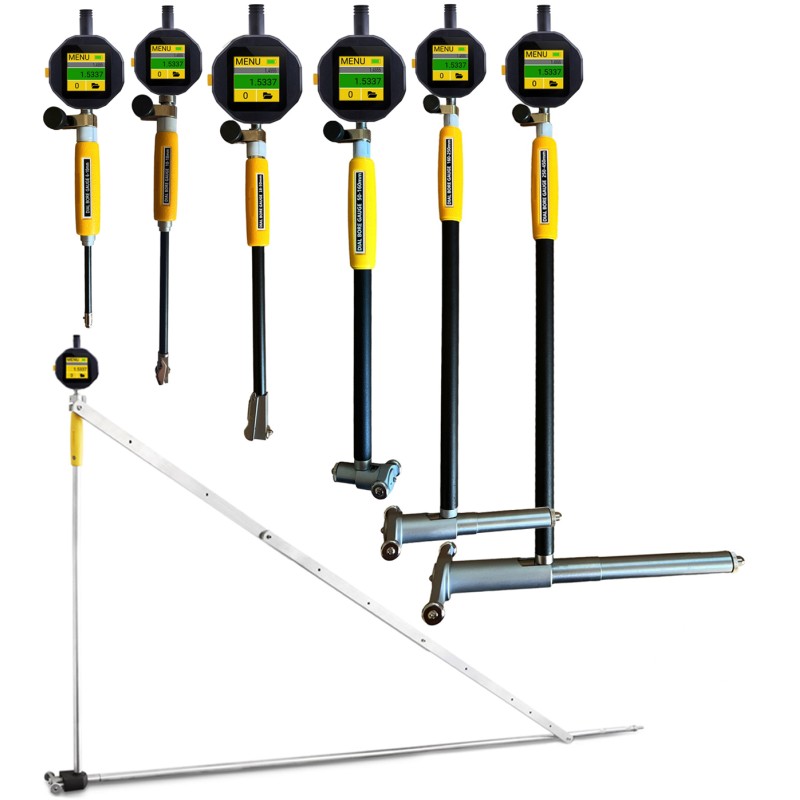

Gauges are available in various depth options. See separate listing for Sets, Analog, or Digital variants. Microtech also manufactures extreme depth & diameter variants as well as "Retractable/Foldable" leg option (for inside cavities), bore scope camera, and specialized gunsmithing bore gauges.

All MICROTECH Electronic bore gauges pass metrological control in an ISO 17025 accredited laboratory (Ilac) and supplied with calibration protocol

It’s possible to manufacture any range and depth of gauge per customers request. Many ranges and depths are available for inquiry.
