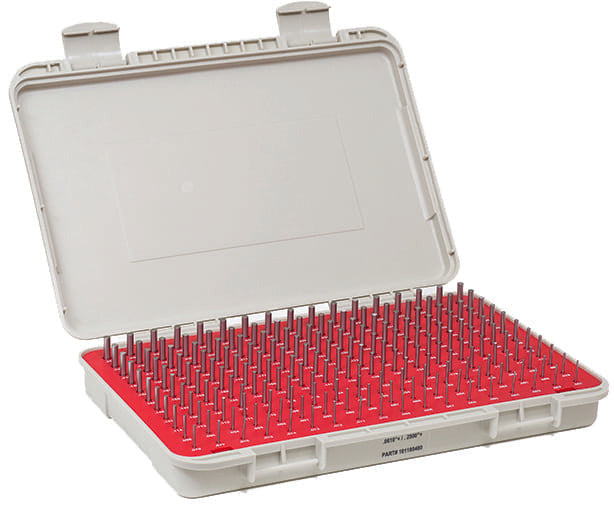

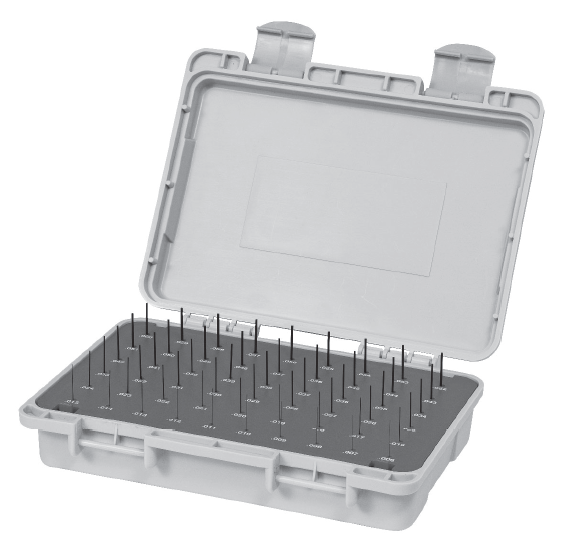

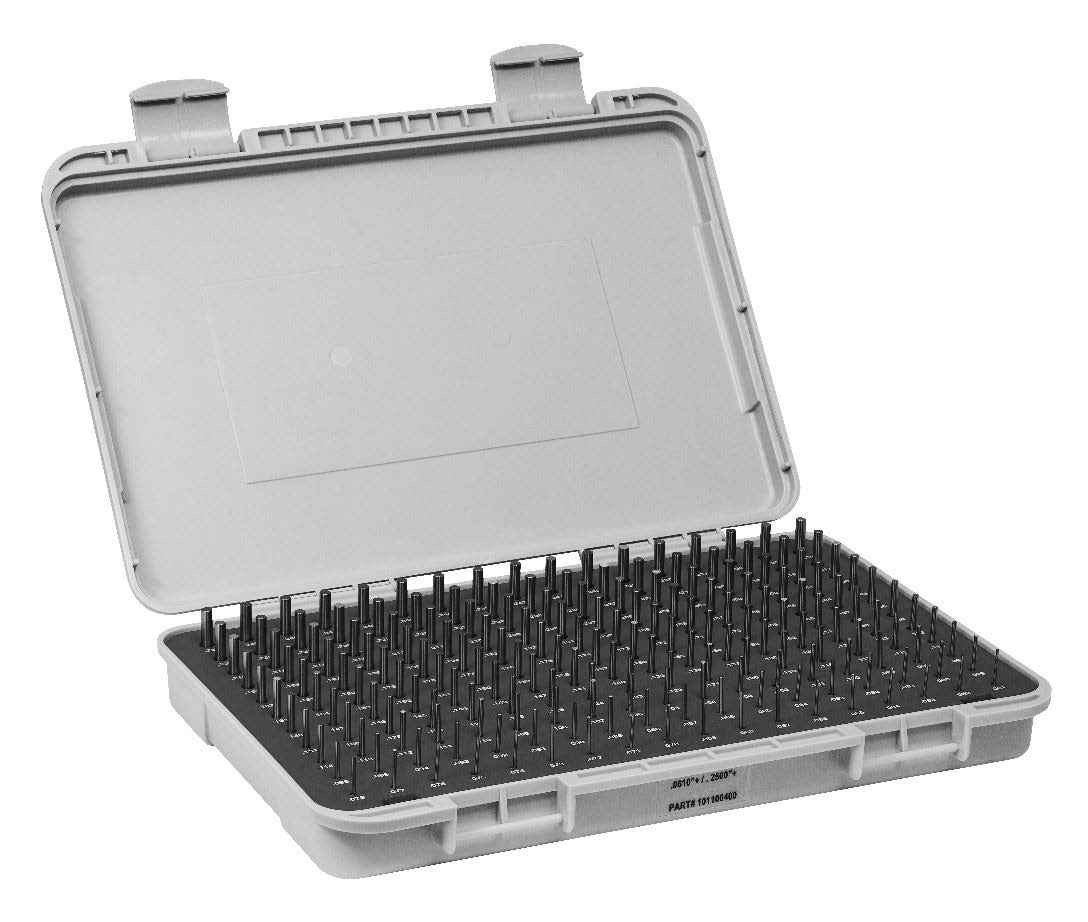

Pin Gage Sets - METRIC - Standard Class ZZ

General Purpose Class ZZ Inch Pin Gage Sets

Make quick and accurate measurements with Vermont Gage Pin Gages.

• Measure hole sizes
• Calculate distance between holes
• Gage slot widths
• Check location
• Apply Go/No-Go gaging
• Calibrate measurement tools

• etc.

• Class ZZ Pin Gages have a 5um total tolerance band.
• Available in Go (Plus) or No-Go (Minus) tolerance directions.
• Standard steel or optional Black Guard coating available.
• NIST Traceable Certificate of Accuracy included
• Sets increment in 0.02mm steps
• Sets can begin either in #.#0mm or #.#1mm origin points
• Hardened tool steel, 60-65HRc
• 50mm Long
• 0.25um finish or better
• Roundness within 2.5um total tolerance
• Individually marked for size and tolerance direction (over 1.50mm)
• Calibration services available - contact for details

Vermont Gage products are produced between their two domestic USA facilities in Vermont and Kentucky. Accredited by numerous quality management agencies, internal emphasis on continual improvement, and investment in direct NIST traceability ensures you can have confidence in the gages you purchase from us.

Vermont Gage offers many specials, and additional products available for quote. Please review the catalog for an extensive listing. But such products include carbide or chrome plated steel pins, hex gages, progressive step Go/No-Go pins, custom kitted inspection assortments, depth notching on gages, vent grooves, calibration services, and special long & large gages. Feel free to reach out directly to Progressive Metrology and we can supply all of these products & services to you.
