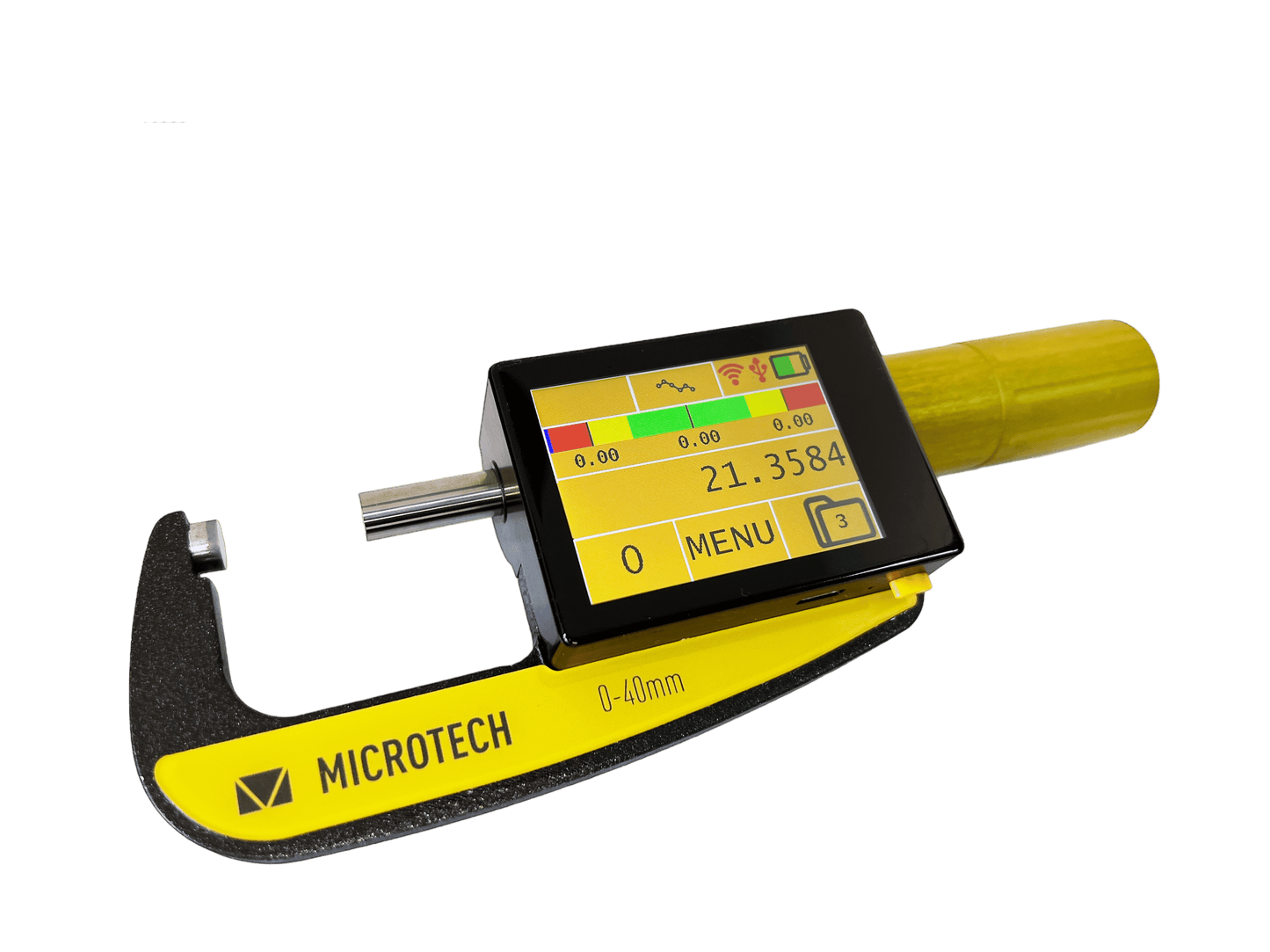

Non-rotating TABLET micrometer 0-40x0.001 IP-65 Wireless+USB

MICROTECH Precision TABLET Micrometers with Non-Rotating Spindles.

Non-Rotating Spindles are ideal for measuring thin and delicate materials.

This micrometer has a solid carbide spindle, fast screw travel, and extended range 40mm stroke.

IP65 Ingress Protection.

Sub-Micron Resolution.

Hand finished measuring screw and carbide anvil faces.

• ON-line GRAPHICAL mode
• Color ANALOG adjustable scale
• HUB Connection (external MICROTECH Wireless device connection)
• 2D Connection possibilities (external device Wireless connection and indication)
• PROBE connection  (external indicator or lever indicator Wireless connection) with AUTO mode
• internal MEMORY for 2000 values with Folders system and statistic,
• LIMITS (Go/NoGo) function with color indication,
• PEAK (Max/min),
• TIMER
• FORMULA Ax2+Bx+C
• Manual TEMPERATURE COMPENSATION
• LINEAR compensation
• RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches
• CALIBRATION date control
• Rechargeable Li-Pol battery with micro-USB socket
• FIRMWARE Update with USB cable
• WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions).
• WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
• Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
• USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH micrometers pass metrological control in an ISO 17025 accredited laboratory (Ilac) with calibration protocol.

Microtech offers a wide variety of micrometers for many applications. From extremely large sizes, to specialized tips and more. Reach out with your specific inquiry and they may have a ready solution for your need! Custom software solutions are also available with Tablet micrometers.
