Micron TOUCH Probe Tablet Height Gauge - Motorized with Granite

Micron TOUCH Probe Tablet Height Gauge - Motorized with Granite

Range
$1,395.00
$1,395.00
Sale Sold out

144304277

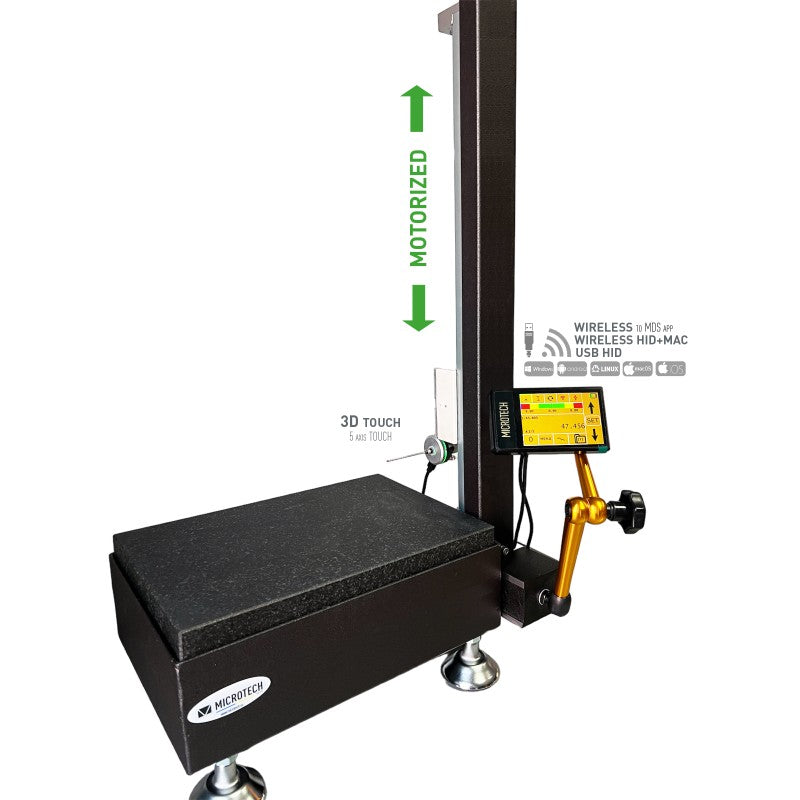

MICROTECH manufacturing Tablet micron double column height gauges with MOTORIZED movement, adopted to Industry 4.0, with Granite Base

Tablet height gauge using computerized measuring system developed and patented by MICROTECH  (Patents US10184772,  UA174949, UA126928) with 1 micron resolution and having 420, 720, 1120 mm (16, 28, 45 inch) ranges.

MICROTECH Tablet height gauge is moving with MOTORIZED system on Z axis.

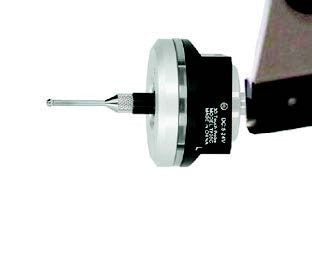

TTP-01 is the standard probe, 2mm steel tip, 10/15/20um repeatability.

Contact us for an optional higher precision probe.

Customer can select different measuring speed and Touch repeatability to improve accuracy of measuring.

TABLET display is remotely mounted. And height gauge is built upon a sturdy granite base.

Granite base 300×200 gr.0. (size can be customized)

TABLET measuring module of height gauge has such functions :
  • ON-line GRAPHICAL mode
  • Color ANALOG adjustable scale
  • HUB Connection (external MICROTECH Wireless device connection)
  • 2D (X & Z axis) Connection possibilities (external device Wireless connection and indication)
  • PROBE connection  (external indicator or lever indicator Wireless connection) with AUTO mode
  • internal MEMORY for 2000 values with Folders system and statistic,
  • LIMITS (Go/NoGo) function with color indication,
  • PEAK (Max/min),
  • TIMER
  • FORMULA Ax2+Bx+C
  • Manual TEMPERATURE COMPENSATION
  • LINEAR compensation
  • RESOLUTION selection 0.1/0.01/0.001 mm also in inches
  • CALIBRATION date control
  • Rechargeable Li-Pol battery with micro-USB socket
  • FIRMWARE Update with USB cable
  • WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
  • WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
  • Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
  • USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH height gauges have hand finished measuring surfaces (Ra<0,32) and pass metrological control in an ISO 17025 ILAC accredited laboratory.

IT IS POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO HEIGHT GAUGES PER CUSTOMER REQUEST
