2D Manual Tablet micron double column height gauge up to 40"/1000mm (X axis 100mm) wheel adjust Wireless+USB

2D Manual Tablet micron double column height gauge up to 40"/1000mm (X axis 100mm) wheel adjust Wireless+USB

Range
X-Axis Indicator Travel
$1,030.00
$1,030.00
Sale Sold out

144303371

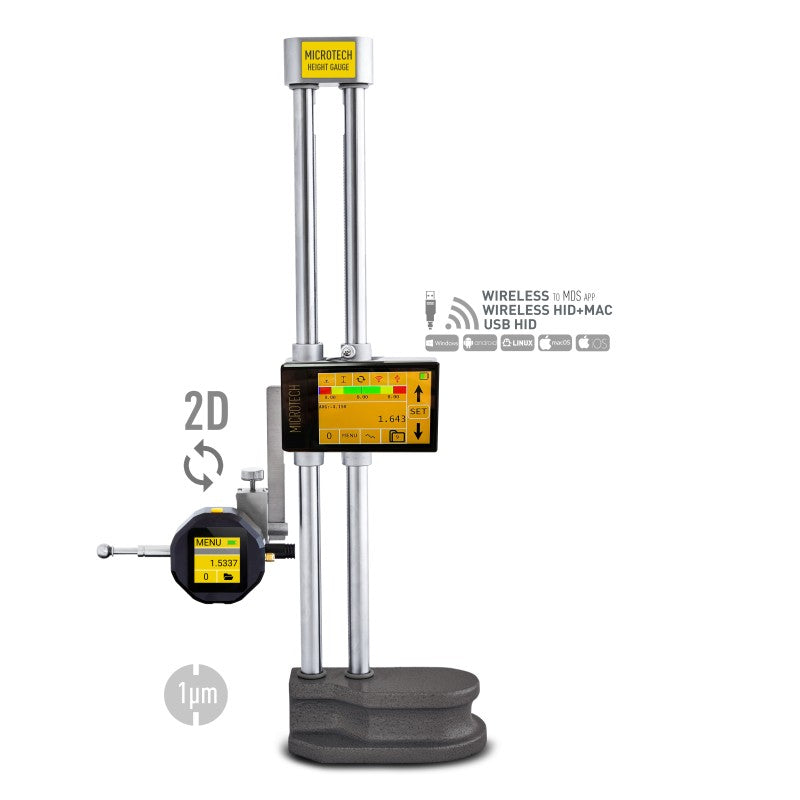

MICROTECH manufacturing 2D Tablet micron double column height gauges with fine adjustment adopted to Industry 4.0

Tablet height gauge using computerized measuring system developed and patented by MICROTECH  (Patents US10184772,  UA174949, UA126928) with 1 micron resolution and having 300, 600, 1000 mm (12, 24, 40 inch) ranges.

MICROTECH 2D Tablet height gauge is moving with fine adjustment wheel and has sub-micron indicator on 2nd axis.
Scales can be synchronized (data saving, graphic, etc.)

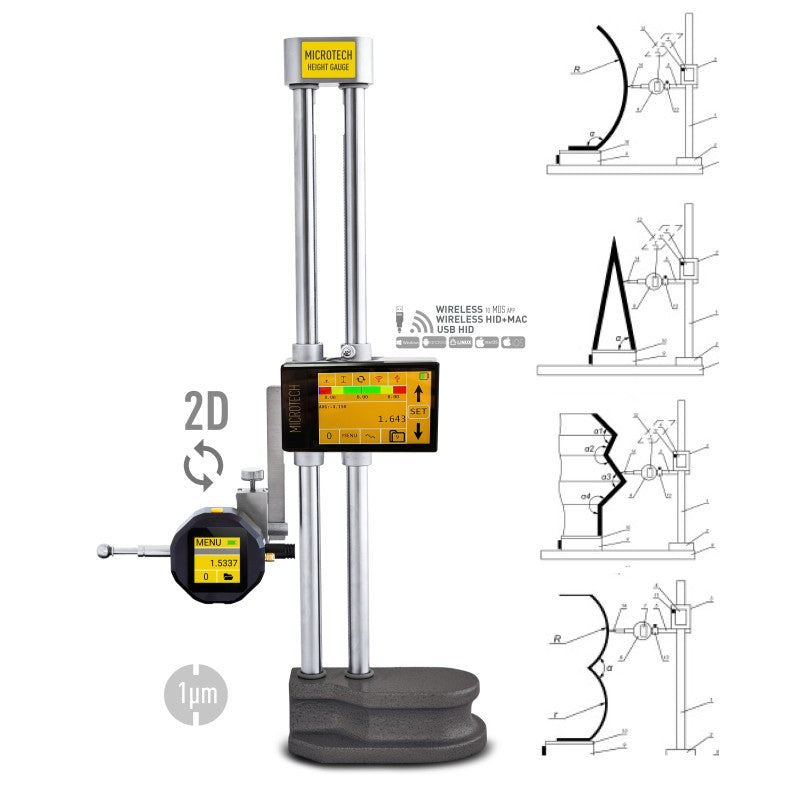

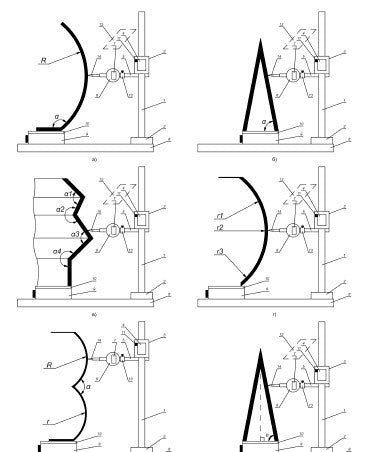

2D Indicator allows plotting of Z and X coordinates!

MICROTECH Tablet height gauge moves with a fine adjustment wheel
TABLET measuring module of height gauge has such functions :
  • ON-line GRAPHICAL mode
  • Color ANALOG adjustable scale

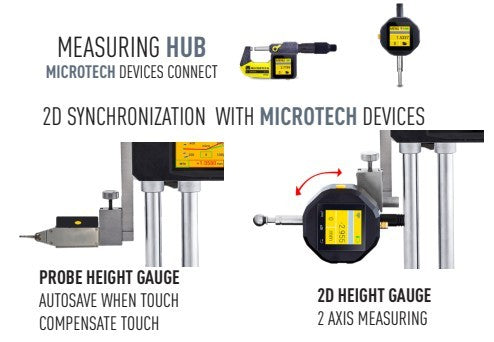

  • HUB Connection (external MICROTECH Wireless device connection)
  • 2D (X & Z axis) Connection possibilities (external device Wireless connection and indication)
  • PROBE connection  (external indicator or lever indicator Wireless connection) with AUTO mode
  • internal MEMORY for 2000 values with Folders system and statistic,
  • LIMITS (Go/NoGo) function with color indication,
  • PEAK (Max/min),
  • TIMER
  • FORMULA Ax2+Bx+C
  • Manual TEMPERATURE COMPENSATION
  • LINEAR compensation
  • RESOLUTION selection 0.1/0.01/0.001 mm also in inches
  • CALIBRATION date control
  • Rechargeable Li-Pol battery with micro-USB socket
  • FIRMWARE Update with USB cable
  • WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
  • WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
  • Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
  • USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH height gauges have hand finished measuring surfaces (Ra<0,32) and pass metrological control in an ISO 17025 ILAC accredited laboratory.

IT IS POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO HEIGHT GAUGES PER CUSTOMER REQUEST



SHIPPING - Popular Microtech items are held in US stock, however MOST items are imported in bi-monthly bulk shipments. After which they are split up and shipped out to customers. Therefore it may take 2-4wks to receive your Microtech item. If an item is on back-order then we will contact you. Otherwise please be patient and we will provide domestic tracking info as soon as we can. When in doubt, use our Contact Us form to ask questions.
