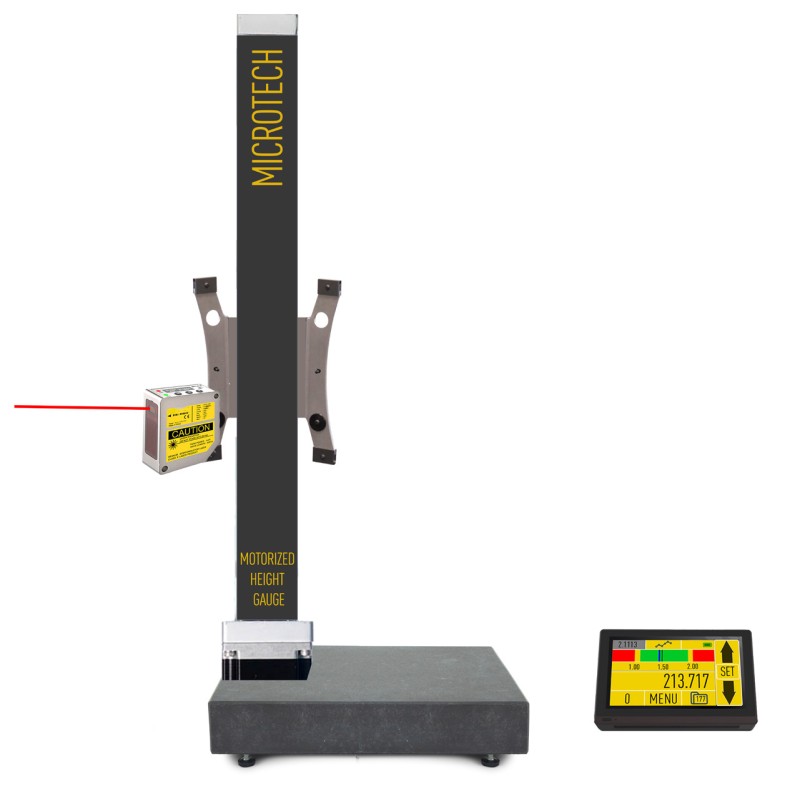

Micron 2D LASER Tablet Height Gauge - Motorized with Granite

Micron 2D LASER Tablet Height Gauge - Motorized with Granite

Range
X-Axis Laser Range
Regular price $2,040.00
Regular price Sale price $2,040.00
Sale Sold out

SKU:144304398

MICROTECH manufacturing 2D Tablet micron double column height gauges with MOTORIZED movement, adopted to Industry 4.0, with Granite Base

Tablet height gauge using computerized measuring system developed and patented by MICROTECH  (Patents US10184772,  UA174949, UA126928) with 1 micron resolution and having 400, 700, 1000 mm (15, 27, 40 inch) ranges.

MICROTECH 2D Tablet height gauge is moving with MOTORIZED system on Z axis. And LASER distance measurement on X axis.

Scales can be synchronized (data saving, graphic, etc.)

2D Laser allows plotting of Z and X coordinates!
Laser is available either as short range with fine resolution or far range with less resolution.

TABLET display is remotely mounted. And height gauge is built upon a sturdy granite base.

TABLET measuring module of height gauge has such functions :
  • ON-line GRAPHICAL mode
  • Color ANALOG adjustable scale
  • HUB Connection (external MICROTECH Wireless device connection)
  • 2D (X & Z axis) Connection possibilities (external device Wireless connection and indication)
  • PROBE connection  (external indicator or lever indicator Wireless connection) with AUTO mode
  • internal MEMORY for 2000 values with Folders system and statistic,
  • LIMITS (Go/NoGo) function with color indication,
  • PEAK (Max/min),
  • TIMER
  • FORMULA Ax2+Bx+C
  • Manual TEMPERATURE COMPENSATION
  • LINEAR compensation
  • RESOLUTION selection 0.1/0.01/0.001 mm also in inches
  • CALIBRATION date control
  • Rechargeable Li-Pol battery with micro-USB socket
  • FIRMWARE Update with USB cable
  • WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
  • WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
  • Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
  • USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH height gauges have hand finished measuring surfaces (Ra<0,32) and pass metrological control in an ISO 17025 ILAC accredited laboratory.

IT IS POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO HEIGHT GAUGES PER CUSTOMER REQUEST
