TABLET long jaw e-FORCE 1-20N caliper up to 5m meters and 300mm jaws Wireless+USB

TABLET long jaw e-FORCE 1-20N caliper up to 5m meters and 300mm jaws Wireless+USB

Range
Jaw Length
$519.00
$519.00
Sale Sold out

141005216

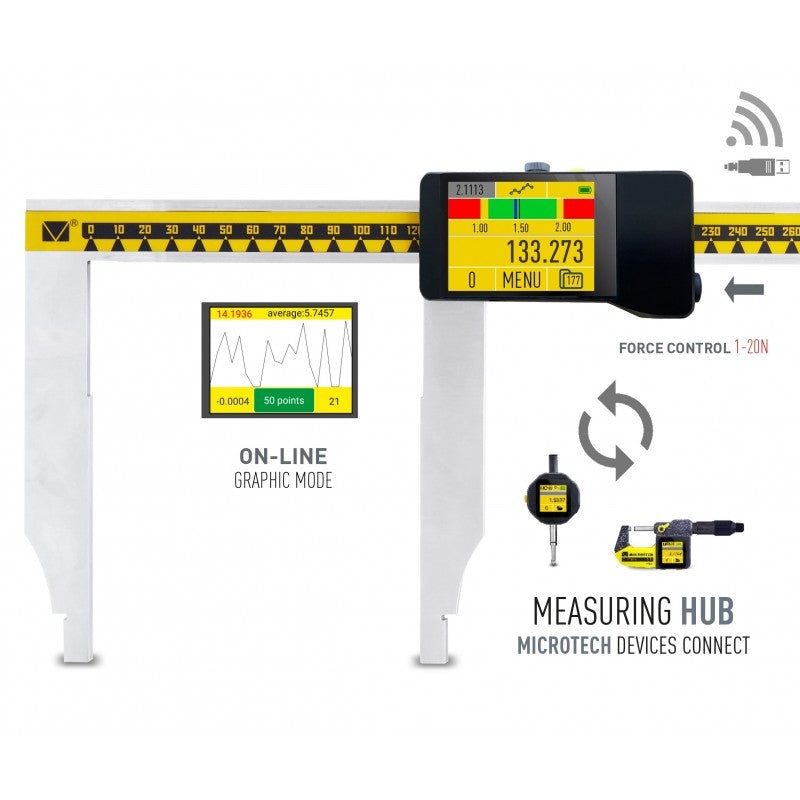

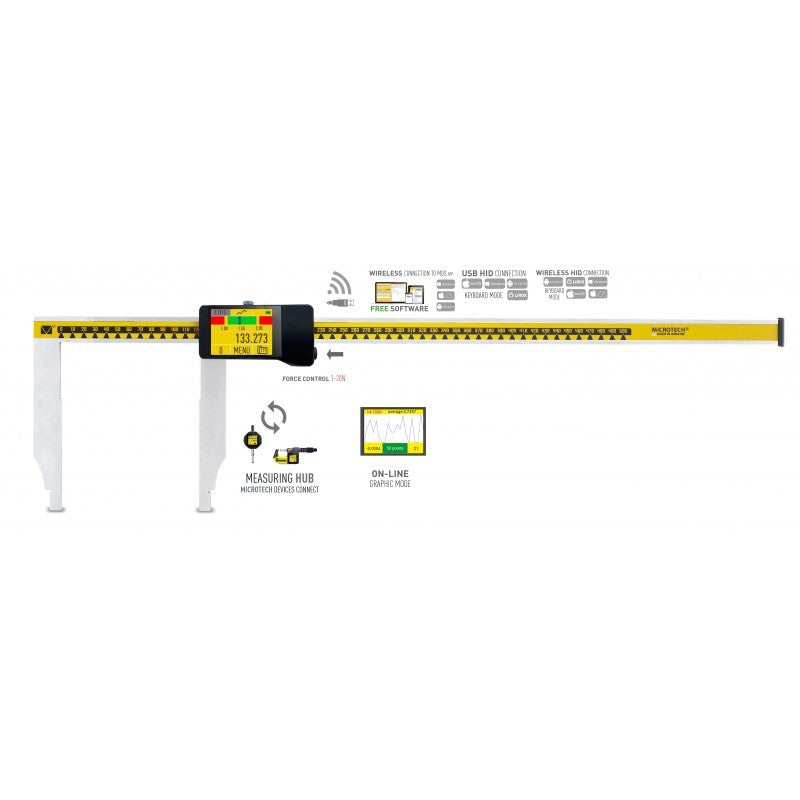

Microtech - Large - Long Jaw Digital Calipers with Tablet display and e-Force control and Wireless data logging!


Tablet calipers use a measuring system developed and patented by Microtech
(Patents US10184772,  UA111194, UA112361, UA121681)

With measuring ranges from 500mm up to 4000mm (20"-200"), and jaw lengths from 100mm up to 300mm (4"-12").

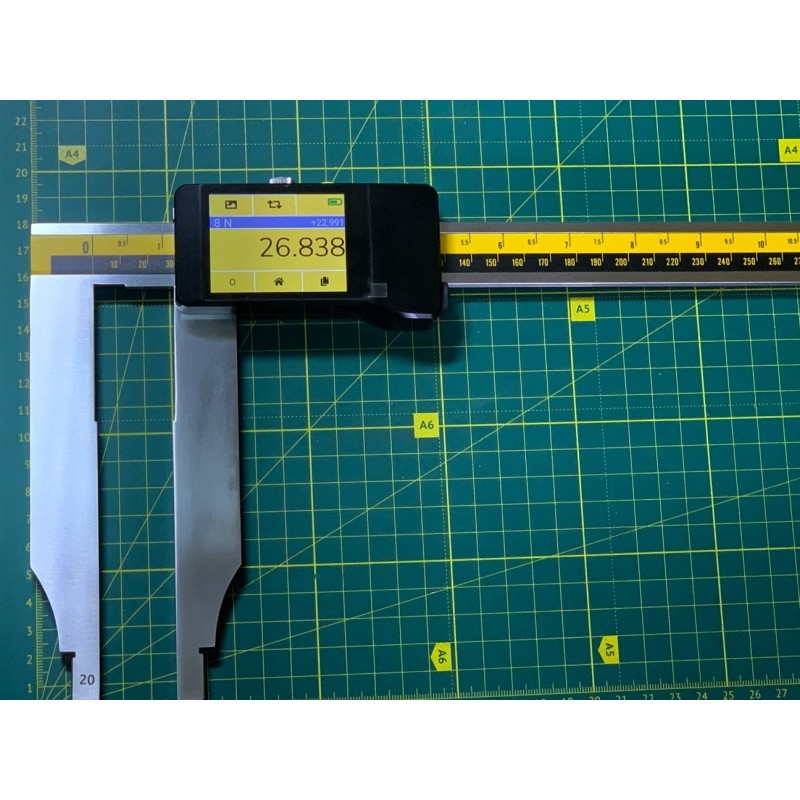

Microtech's e-Force programmable measuring force control gives consistent and adjustable pressure for taking measurements. It also allows automatic saving of data points to memory upon reaching this preset force value! Improving the accuracy and repeatability of measurements across operators and between measuring sessions. Data can be wirelessly sent to a computer or other device.



TABLET measuring module of Caliper has such functions :

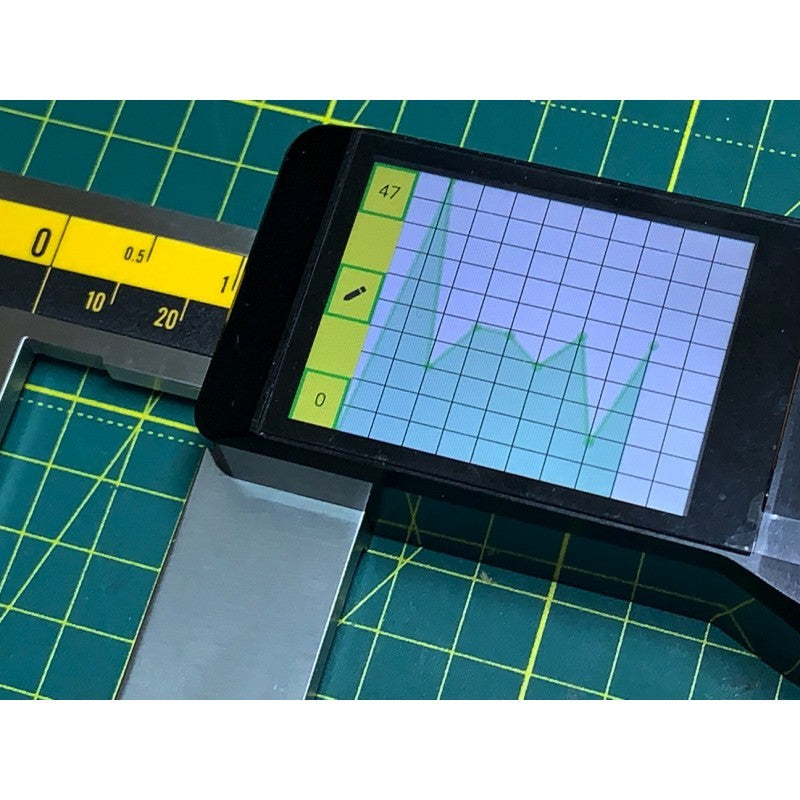

  • ON-line GRAPHICAL mode
  • Color ANALOG adjustable scale
  • HUB Connection (external MICROTECH Wireless device connection)
  • 2D Connection possibilities (external device Wireless connection and indication)
  • PROBE connection  (external indicator or lever indicator Wireless connection) with AUTO mode

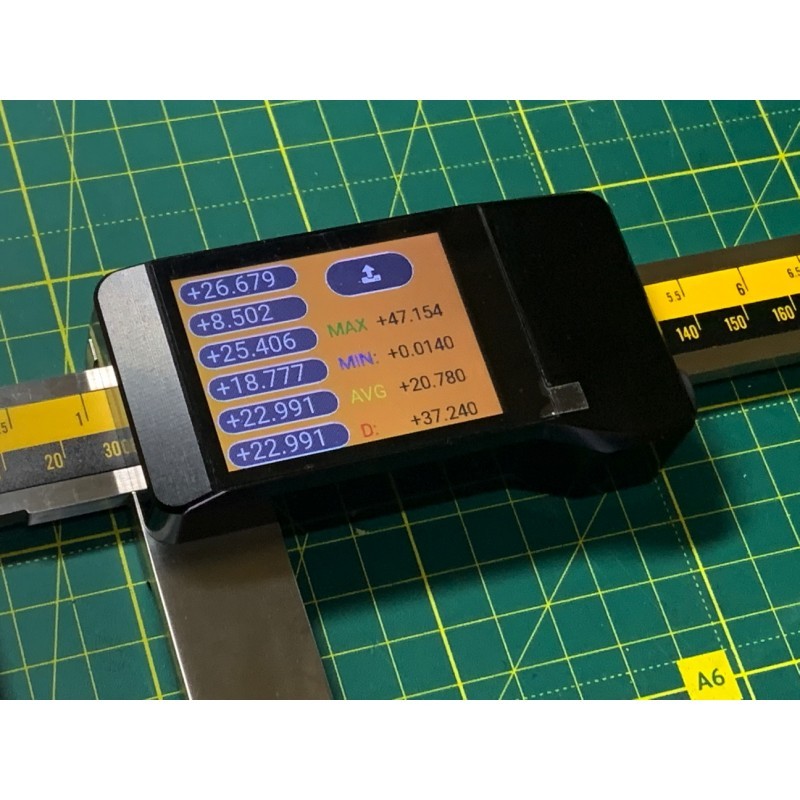

  • Internal MEMORY for 2000 values with Folders system and statistics
  • LIMITS (Go/NoGo) function with color indication
  • PEAK (Max/min)
  • TIMER
  • FORMULA Ax2+Bx+C
  • Manual TEMPERATURE COMPENSATION
  • LINEAR compensation
  • RESOLUTION selection 0.1/0.01/0.001 mm also in inches
  • CALIBRATION date control
  • Rechargeable Li-Pol battery with micro-USB socket
  • FIRMWARE Update with USB cable
  • WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
  • WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
  • USB HID data transfer to any system and app (keyboard mode) with data config possibilities
  • Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
  • CONNECTION Status indication on the main display

MICROTECH WIRELESS caliper have 3 data transfer modes:
 • WIRELESS data transfer to MDS app ( available app’s versions for Windows, Android, iOS, MacOS)  Link to MDS app’s
 • WIRELESS HID mode direct to any device and app (like a keyboard)
 • WIRELESS HID+MAC mode direct to any device and app (like a keyboard) with MAC address

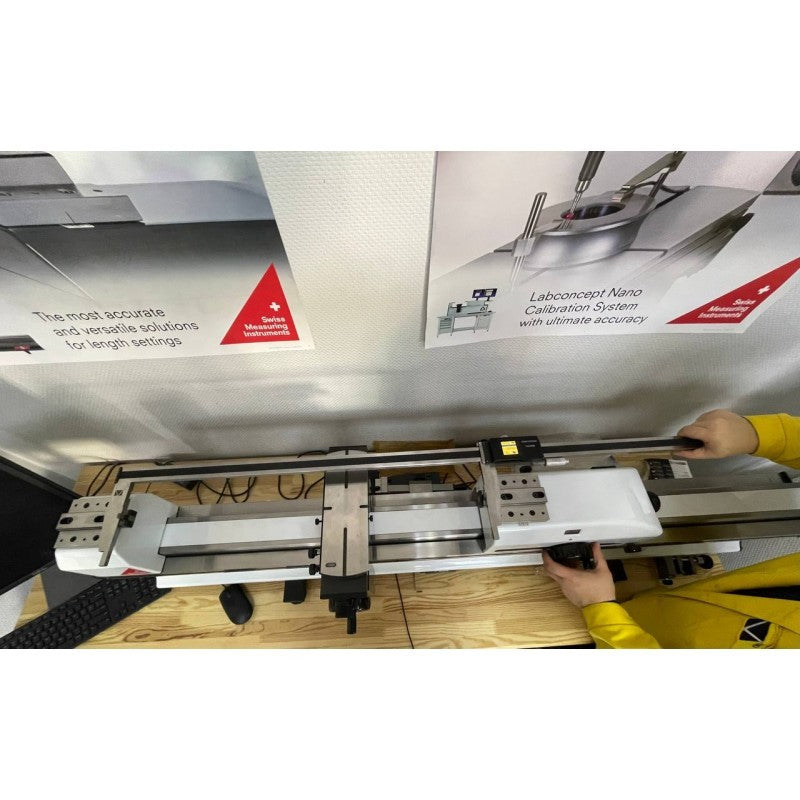

All MICROTECH CALIPERS have hand finished measuring surfaces (Ra<0,32) and pass metrological control in an ISO 17025 ILAC accredited laboratory.

IT IS POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 CALIPERS FOR CUSTOMER REQUESTS
