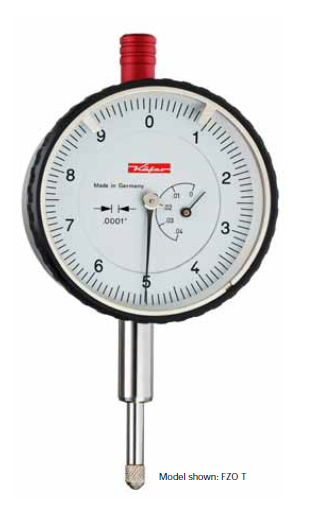

Kafer FZOT Dial Gauge Indicator 0.0001" Resolution

Kafer FZOT Dial Gauge Indicator

0.0001" Resolution x 0.040" (0-10)

2-1/4" Bezel

1.3N Initial Measuring Force

8mm Stem Diameter

The carefully thought-out design, the use of selected components and materials as well as the movement perfected by precision engineering guarantee reliable measuring results and a long service life of our Precision Dial Gauges.
Spindle and stem are made of resistant stainless steel. The spindle is lapped.

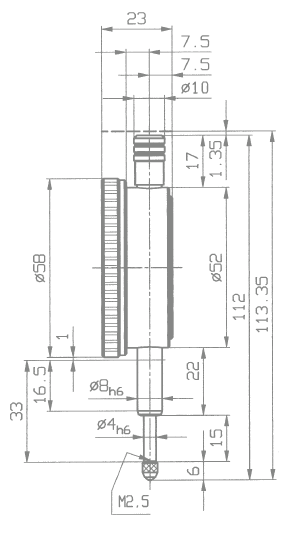

Dimensions and accuracy according to DIN EN ISO 463 /
manufacturing standard 0.0800.9.0005

We maintain some inventory domestically. In the event we need to import additional quantity to fulfill your order, typical lead time is 3-4wks. Unless the OEM is back-ordered, at which point we would contact you with an update.
