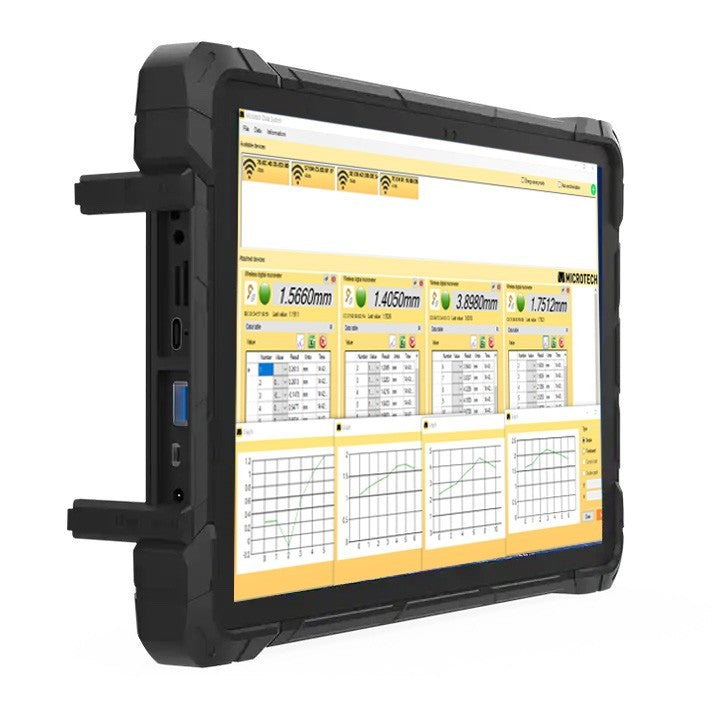

IOT MDS CONNECT IP67 DISPLAY UNIT 10", battery, strap (incl 1 USB dongle+1USB extension+MDS PRO app)

MICROTECH IoT display unit IP67 for WIRELESS and COMPUTERIZED instruments connection.

This display unit is installed with Windows & MDS Pro application.

Hi resolution 10’’ Touchscreen for easy connection and operating with data.

IoT display unit has IP67 protection and built-in rechargeable battery for using in workshop and open areas.

Maximum number of wireless devices connected at the same time – 16

Maximum number of USB devices connected at the same time – 2

DATA OUTPUT to external devices: USB; WI-FI; RJ-45; RS-232; Card reader; HDMI; Cloud;

Memory: Folders 50000 vol, Statistics, Graphic;

Functions:

– Formula

– LIMITS (Go/NoGo)

– PEAK (Max/Min)

– TIMER

– Graph, 2D Graph

– Analog scale

Display: Touch 10″ (1280×800)

Battery: Recharge Li-Pol
