Microtech

DataMet Touchprobe Micron Tablet Height Gauge

DataMet Touchprobe Micron Tablet Height Gauge

Range
$975.00
$975.00
Sale Sold out

144303291-1

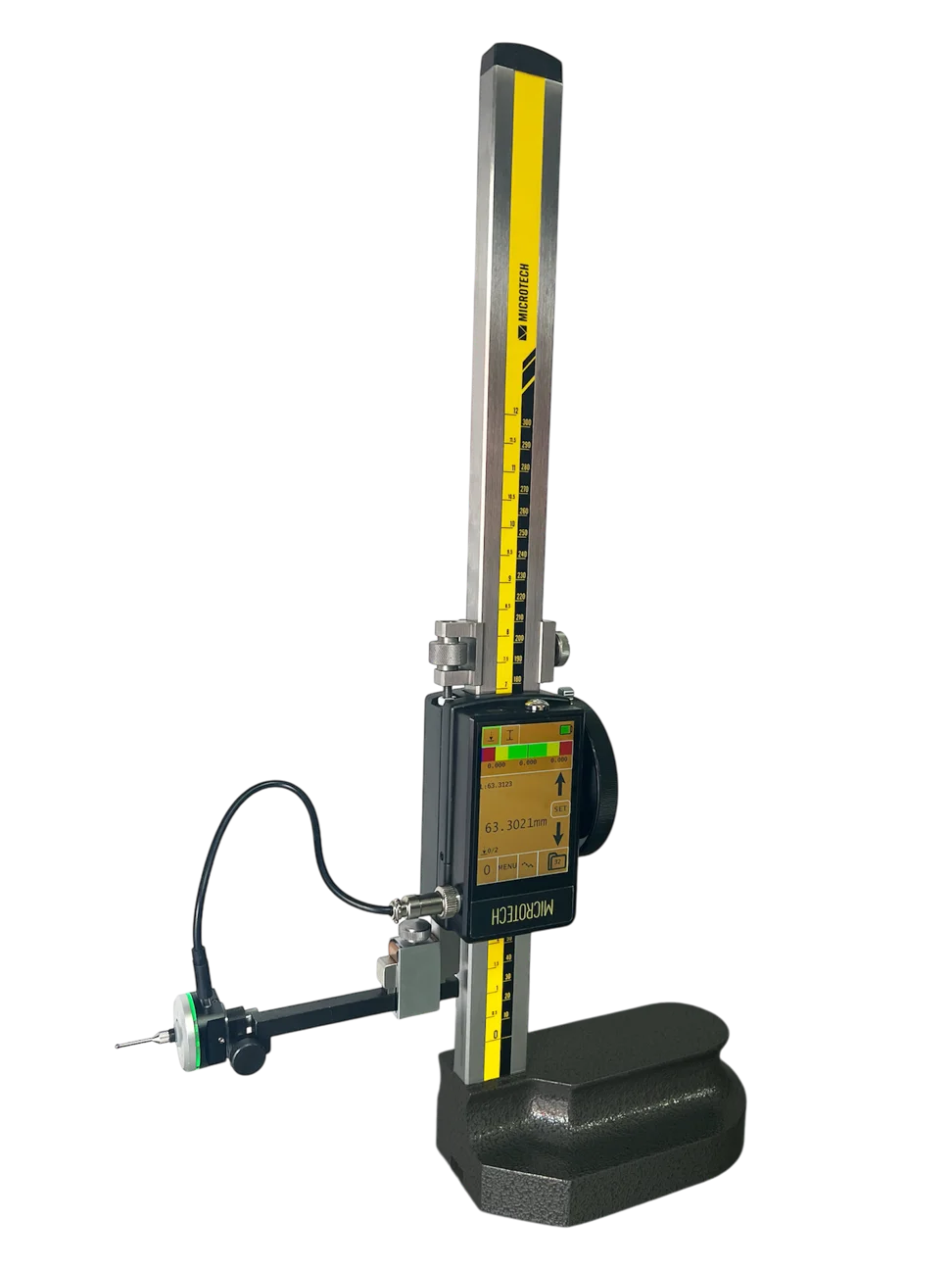

MICROTECH Manufacturing Manual Touchprobe Height Gauge adopted to Industry 4.0

Tablet height gauge using computerized indication system MICS system developed and patented by MICROTECH  (Patents US10184772,  UA174949, UA126928)

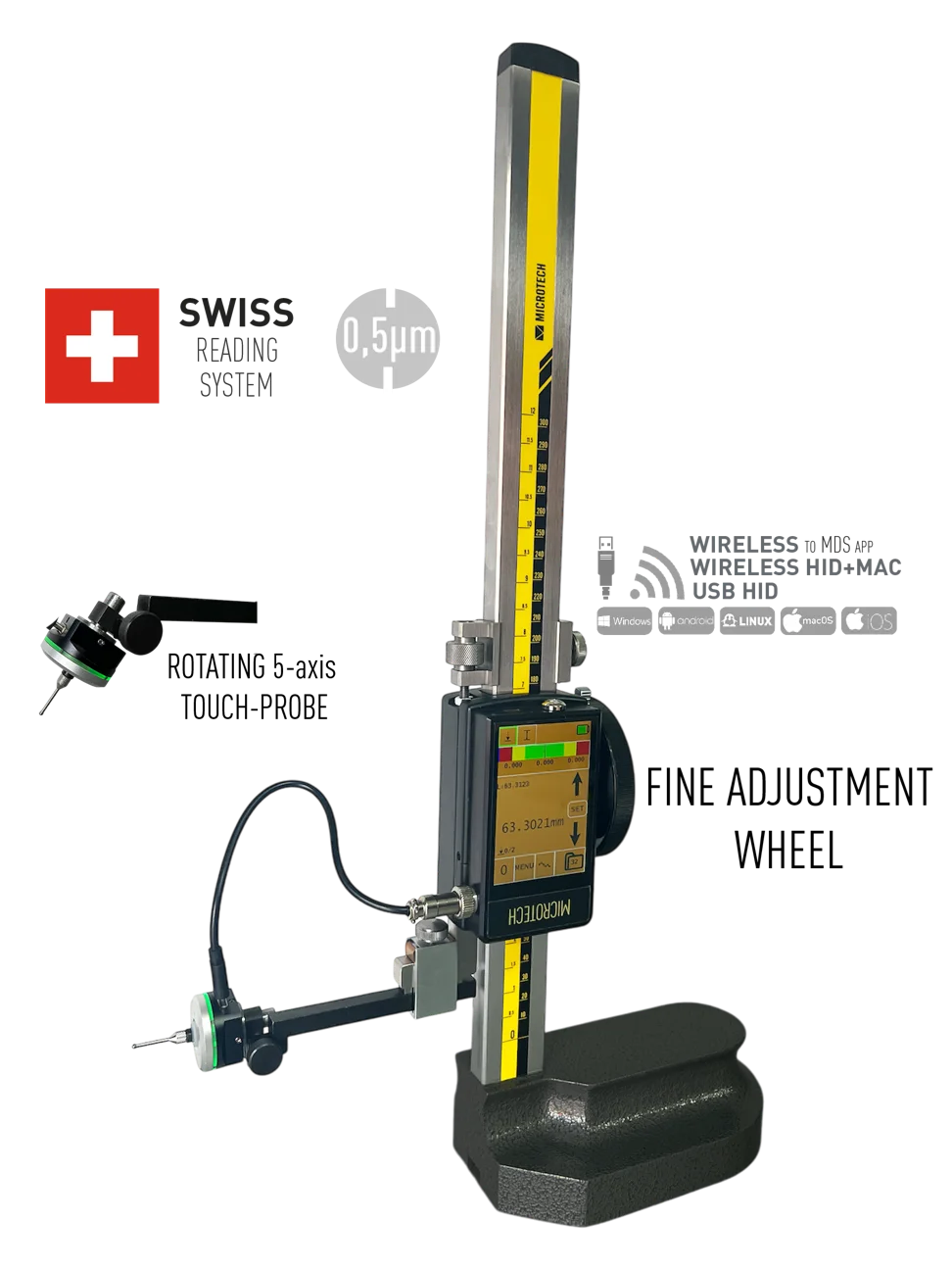

This height gauge has a precision Swiss reading system with 0.5 micron resolution and is available with 300, 600 or 1000mm measuring range.

MICROTECH Tablet height gauge is moved with a fine adjustment wheel.

5-axis Touch-probe improves repeatability and accuracy and gives possibility make internal measurements.

TABLET measuring module of height gauge has such functions :
  • ON-line GRAPHICAL mode
  • Color ANALOG adjustable scale
  • HUB Connection (external MICROTECH Wireless device connection)
  • 2D Connection possibilities (external device Wireless connection and indication)
  • 5 axis Touch-probe with color indication
  • internal MEMORY for 2000 values with Folders system and statistic,
  • LIMITS (Go/NoGo) function with color indication,
  • PEAK (Max/min),
  • TIMER
  • FORMULA Ax2+Bx+C
  • Manual TEMPERATURE COMPENSATION
  • LINEAR compensation
  • RESOLUTION selection 0.1/0.01/0.001, 0.0005 mm also in inches
  • CALIBRATION date control
  • Rechargeable Li-Pol battery with micro-USB socket
  • FIRMWARE Update with USB cable
  • WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
  • WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
  • USB HID data transfer to any system and app (keyboard mode) with data config possibilities
All MICROTECH height gauges have hand finished measuring surfaces (Ra<0,32) and pass metrological control in an ISO 17025 ILAC accredited laboratory.
IT'S POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 HEIGHT GAUGES FOR CUSTOMER REQUEST

SHIPPING - Popular Microtech items are held in US stock, however MOST items are imported in bi-monthly bulk shipments. After which they are split up and shipped out to customers. Therefore it may take 2-4wks to receive your Microtech item. If an item is on back-order then we will contact you. Otherwise please be patient and we will provide domestic tracking info as soon as we can. When in doubt, use our Contact Us form to ask questions.
