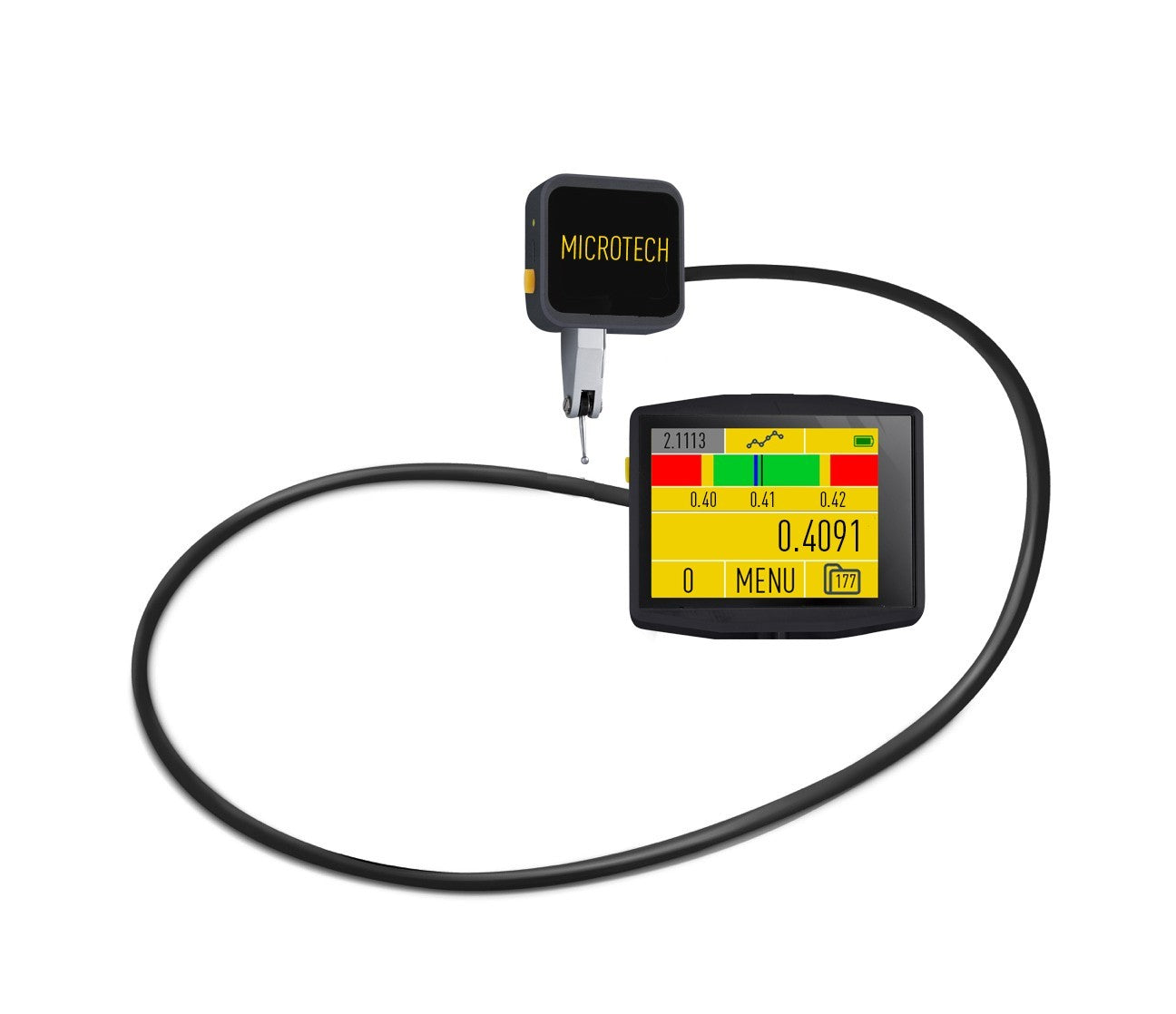

Computerized Test Indicator - With External Display

Computerized test (lever) indicator with Wireless & USB data transfer has resolution down to 0.1 micron and is adapted to Industry 4.0

External probe can be length 2-10m that gives wide range of installation possibilities

0.08mm Range (0.03")

12.8mm Stem (0.5")

+/-5um Accuracy (0.0002")

Computerized MICS measuring system of indicator equipped with internal memory, Go/NoGo functions with color indication, Max/min, Timer, PIN code, Formula function, manual temperature and error compensation. Color hi-res display and Touchscreen provides high usability of sub-micron indicator. It’s not necessary to spend extra money for batteries, with Built in rechargeable Li-pol battery.

-

• ON-line GRAPHICAL mode
• Color ANALOG adjustable scale
• HUB Connection (external MICROTECH Wireless device connection)
• 2D Connection possibilities (external device Wireless connection and indication)
• PROBE connection  (external indicator or lever indicator Wireless connection) with AUTO mode
• Internal MEMORY for 2000 values with Folders system and statistic,
• LIMITS (Go/NoGo) function with color indication,
• PEAK (Max/min),
• TIMER
• FORMULA Ax2+Bx+C, RADIUS, SPHERE
• Manual TEMPERATURE COMPENSATION
• LINEAR compensation
• RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches
• CALIBRATION date control
• Rechargeable Li-Pol battery with micro-USB socket
• FIRMWARE Update with USB cable
• WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
• WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
• Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
• USB HID data transfer to any system and app (keyboard mode) with data config possibilities
