Microtech

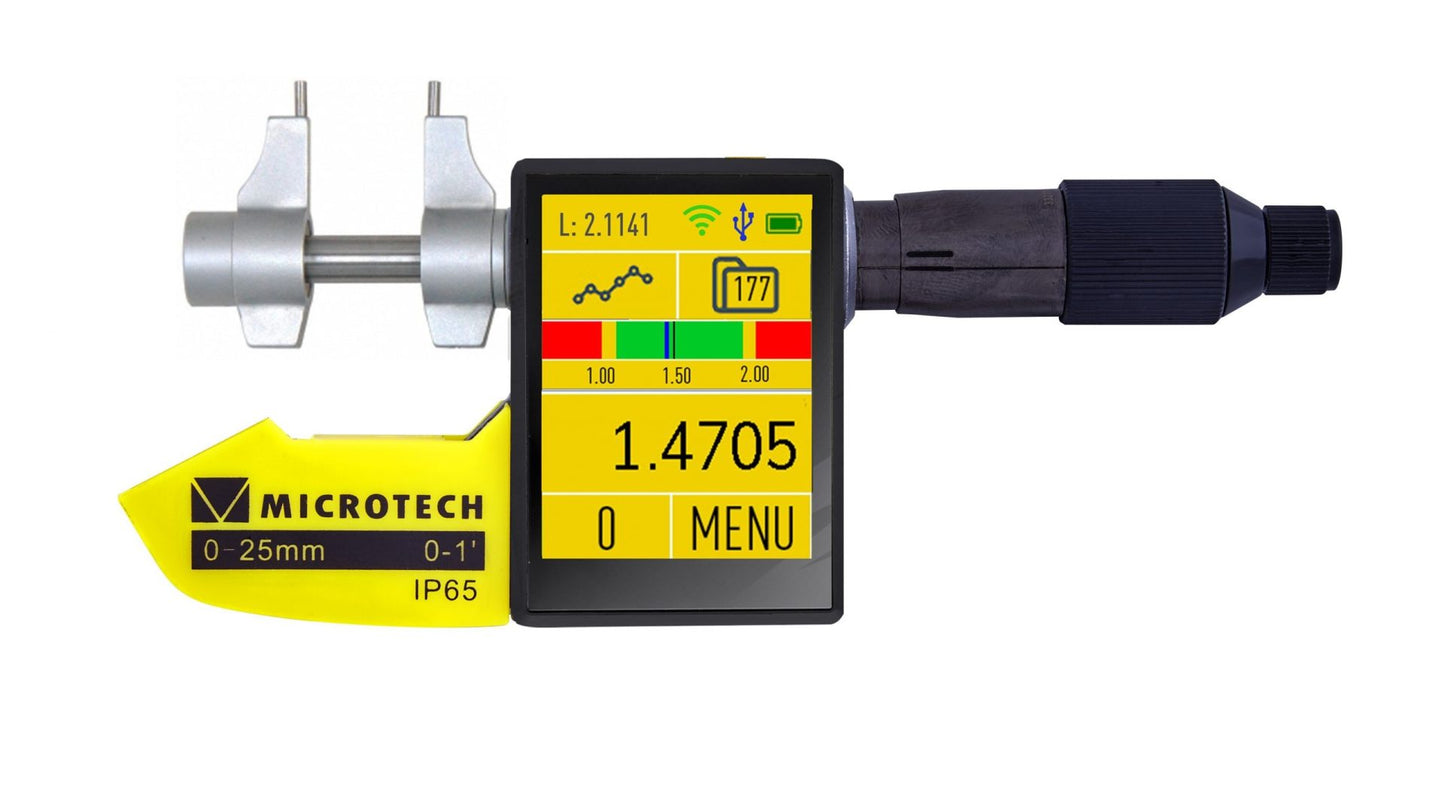

Computerized Sub-Micron Inside Micrometer IP65

Computerized Sub-Micron Inside Micrometer IP65

Range
$488.00
$488.00
Sale Sold out

133800308

MICROTECH manufacturing TABLET Sub-micron inside micrometer is adapted to Industry 4.0
Tablet inside micrometers use a computerized measuring system developed and patented by MICROTECH  (Patents UA126928, UA99686) with 0.1 micron resolution

TABLET measuring module of micrometer has such functions :

  • ON-line GRAPHICAL mode
  • Color ANALOG adjustable scale
  • HUB Connection (external MICROTECH Wireless device connection)
  • 2D Connection possibilities (external device Wireless connection and indication)
  • PROBE connection  (external indicator or lever indicator Wireless connection) with AUTO mode
  • internal MEMORY for 2000 values with Folders system and statistic,
  • LIMITS (Go/NoGo) function with color indication,
  • PEAK (Max/min),
  • TIMER
  • FORMULA Ax2+Bx+C
  • Manual TEMPERATURE COMPENSATION
  • LINEAR compensation
  • RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches
  • CALIBRATION date control
  • Rechargeable Li-Pol battery with micro-USB socket
  • FIRMWARE Update with USB cable
  • WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
  • WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
  • Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
  • USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH micrometers have hand finished measuring surfaces (Ra<0,32) and pass metrological control in an ISO 17025 ILAC accredited laboratory.

IT IS POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 MICROMETERS PER CUSTOMER REQUEST



SHIPPING - Popular Microtech items are held in US stock, however MOST items are imported in bi-monthly bulk shipments. After which they are split up and shipped out to customers. Therefore it may take 2-4wks to receive your Microtech item. If an item is on back-order then we will contact you. Otherwise please be patient and we will provide domestic tracking info as soon as we can. When in doubt, use our Contact Us form to ask questions.
