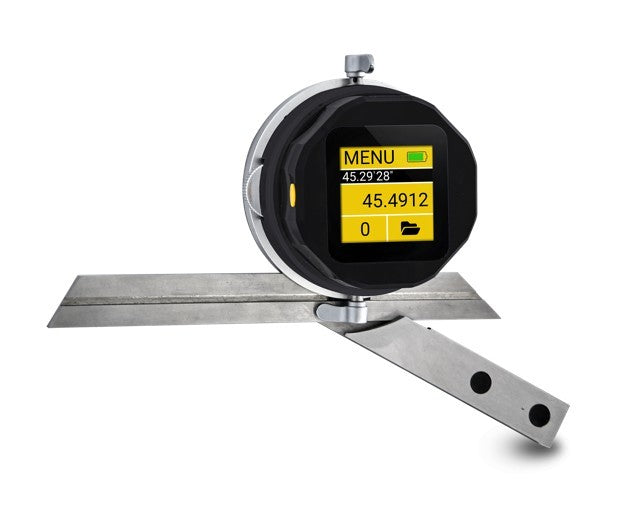

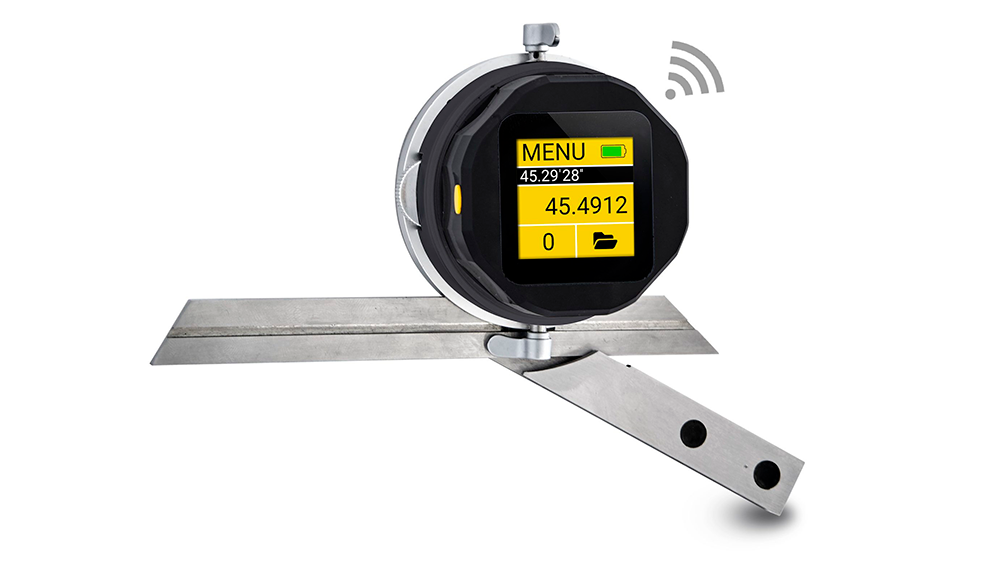

Computerized Protractor

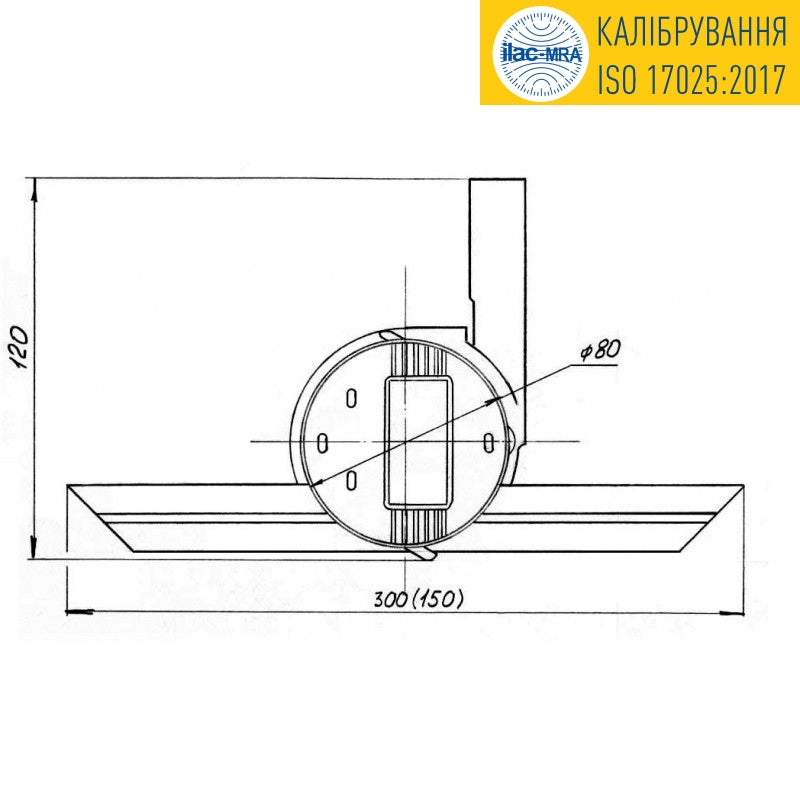

Measure and record angles precisely with this Computerized Protractor from Microtech. Furnished with two bases, 150mm & 300mm lengths, and featuring a fine adjustment wheel makes taking sensitive angular measurements simple.

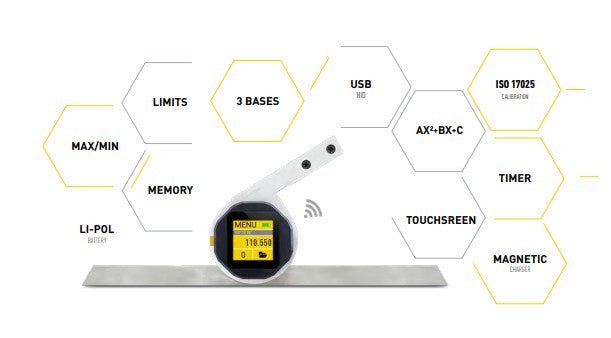

Computerized touchscreen display enables color coded Go/No-Go limit testing, onboard or wireless data logging, adjustable resolution, error compensation, custom formulas, and more.

Angular Resolution: 0.005 Degree (5 arc-seconds)

Angular Accuracy: +/-0.05 Degree (3 arc-minutes)

Full 360 Degree range of motion.

USB and Bluetooth are standard connectivity. Easily integrates for wireless data logging to your PC, MAC, Android, or iOS. Microtech MDS app or directly into your own SPC application or Excel through HID connection mode.

Powered via a rechargeable lithium battery.

ILAC traceable, ISO17025 accredited, calibration report included.
