Microtech

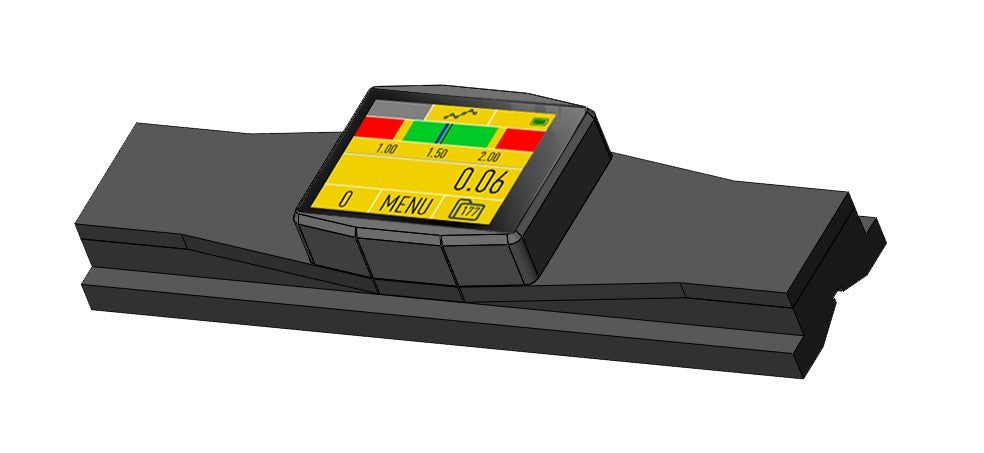

Computerized Level - Tablet Display

Computerized Level - Tablet Display

Base Length
Regular price $831.00
Regular price Sale price $831.00
Sale Sold out

SKU:152110020

Precision horizontal level developed and manufacturing by Microtech is made from high quality cast iron with 200 or 300mm base with hand finished flat and prismatic measuring surfaces with flatness 0,003/0.005 mm/m.


MICROTECH precision horizontal level can control surface in 2 axis with 0.02mm/m /  0.001° resolution and graphical position indication (adjustable scale)

Tablet touchscreen display enables color coded Go/No-Go limit testing, analog bar graph, onboard or wireless data logging, adjustable resolution, error compensation, custom formulas, and more.

Angular Resolution: 0.02mm/m (0.0002"/ft)

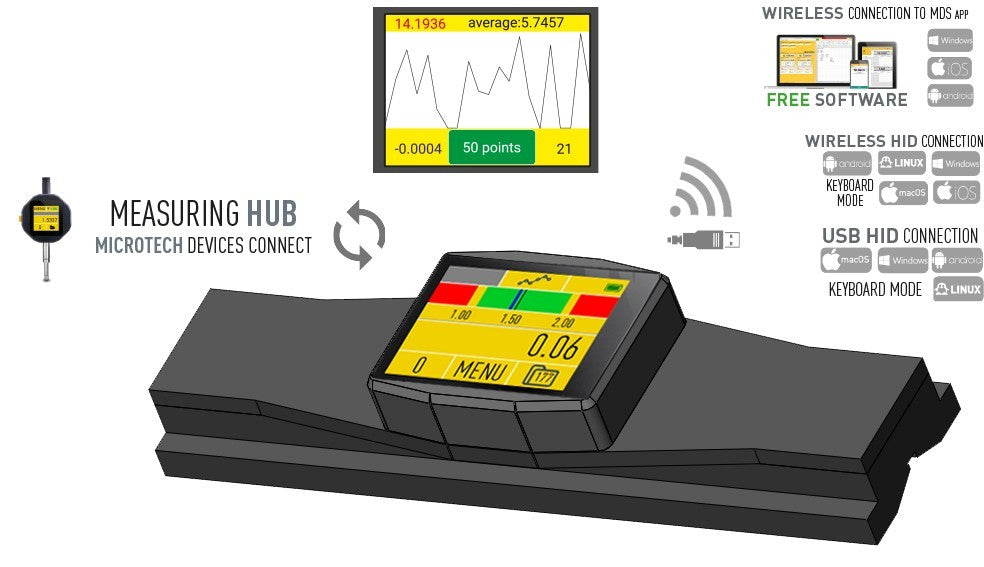

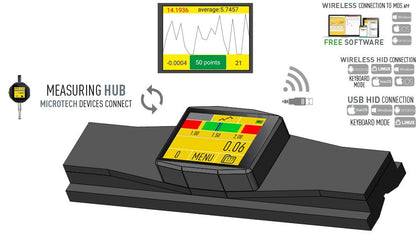

USB and Bluetooth are standard connectivity. Easily integrates for wireless data logging to your PC, MAC, Android, or iOS. Microtech MDS app or directly into your own SPC application or Excel through HID connection mode.



Powered via a rechargeable lithium battery.

ILAC traceable, ISO17025 accredited, calibration report included.
