COMPUTERIZED eFORCE 1-20N caliper CARBIDE 6", 8", 12" - 0-300mm IP54 Wireless+USB

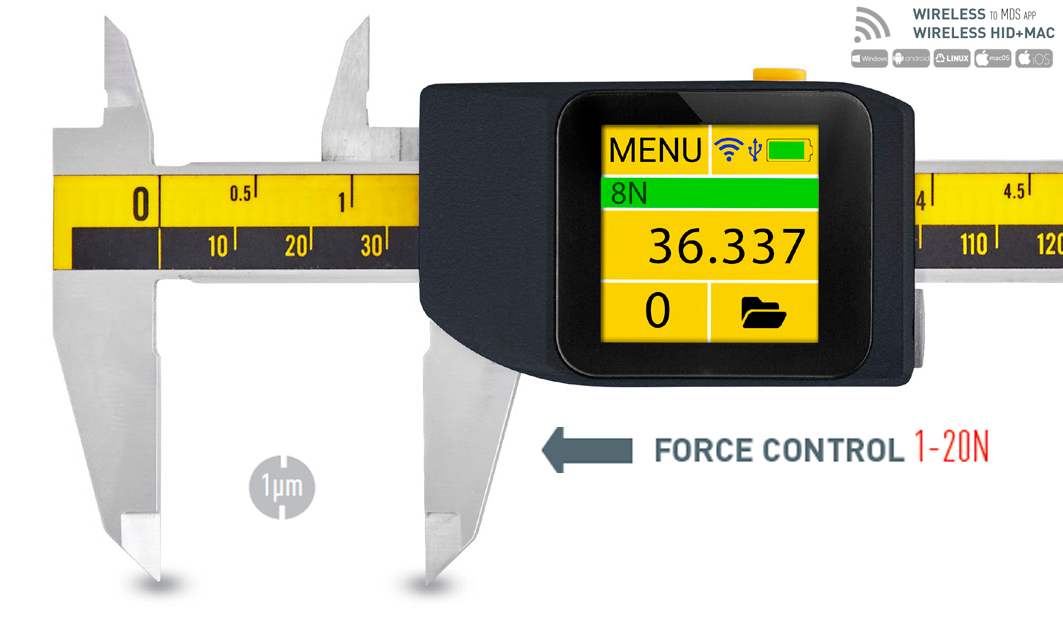

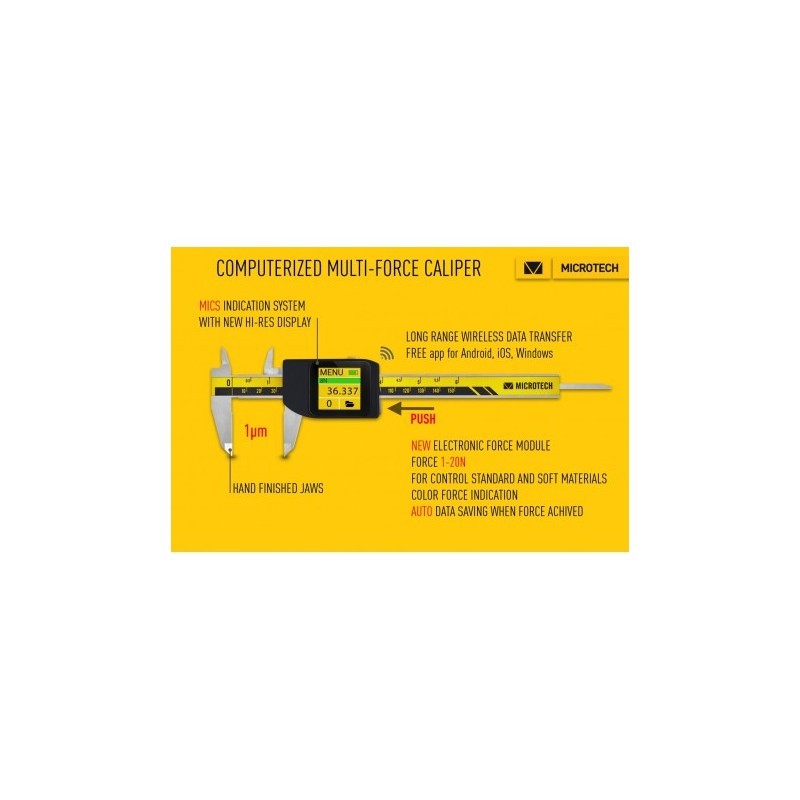

Computerized micron e-Force caliper MICROTECH with multi Force 1-20N control with Wireless and USB data output adopted to Industry 4.0.

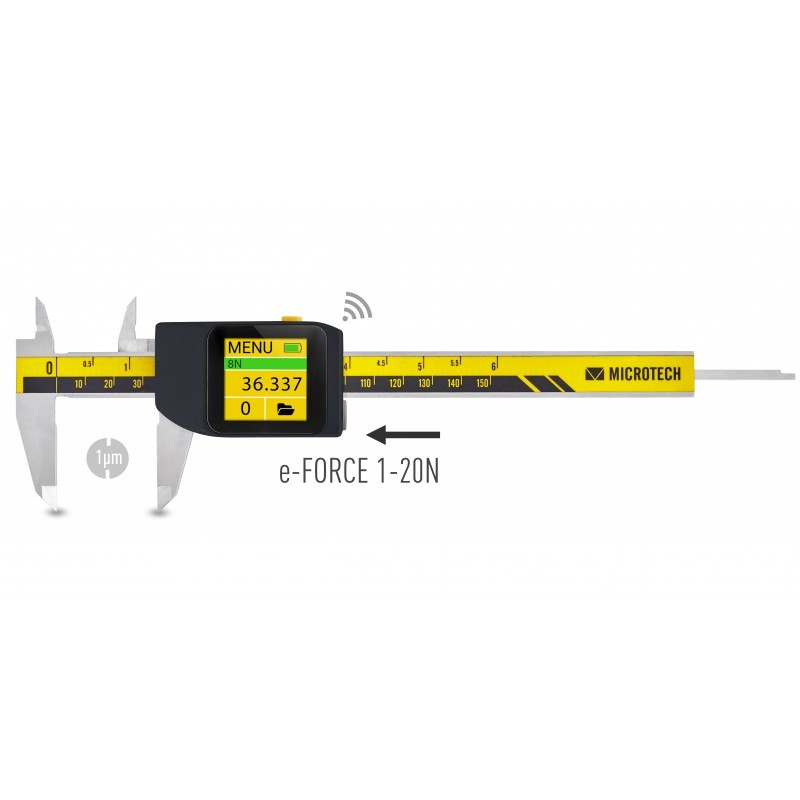

Microtech e-Force calipers are equipped with an electronically adjustable measurement force sensor to ensure consistent measuring performance. Measuring force can be adjusted from 1-20N.

Automatic Force mode gives possibility saving to memory or transfer to an app the actual value upon reaching a given Force (1-20N). Patented e-Force technology improving accuracy of caliper and automating the measuring process.

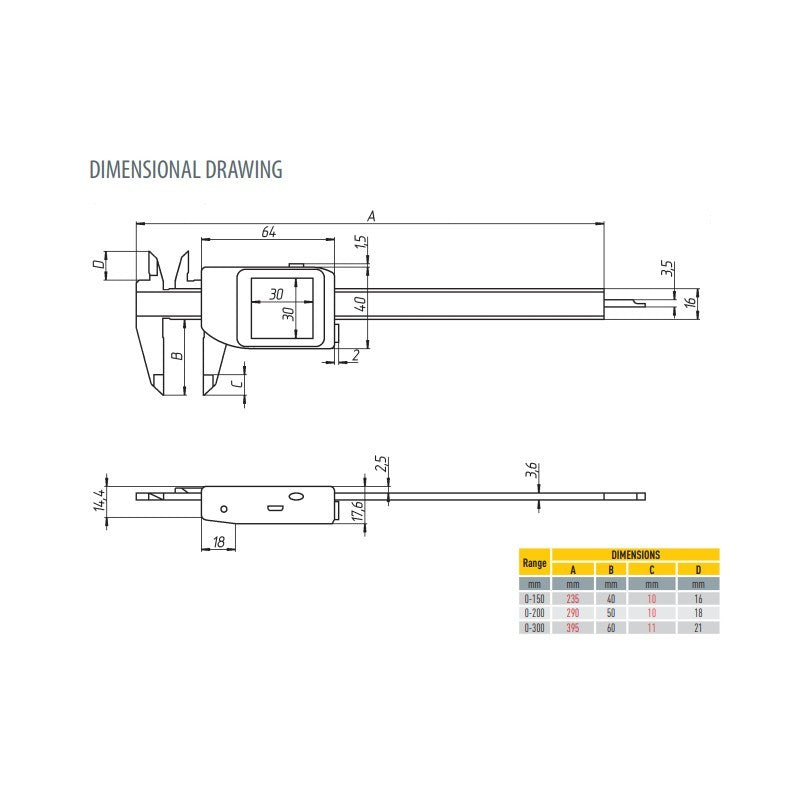

These precision calipers are available in 150, 200, 300 mm (6, 8, 12 inch) ranges.

Swiss made reading system is available in either 1 or 5 micron resolution.

Ukrainian made caliper body with hand finished jaws surfaces.

IP54 Ingress Protection

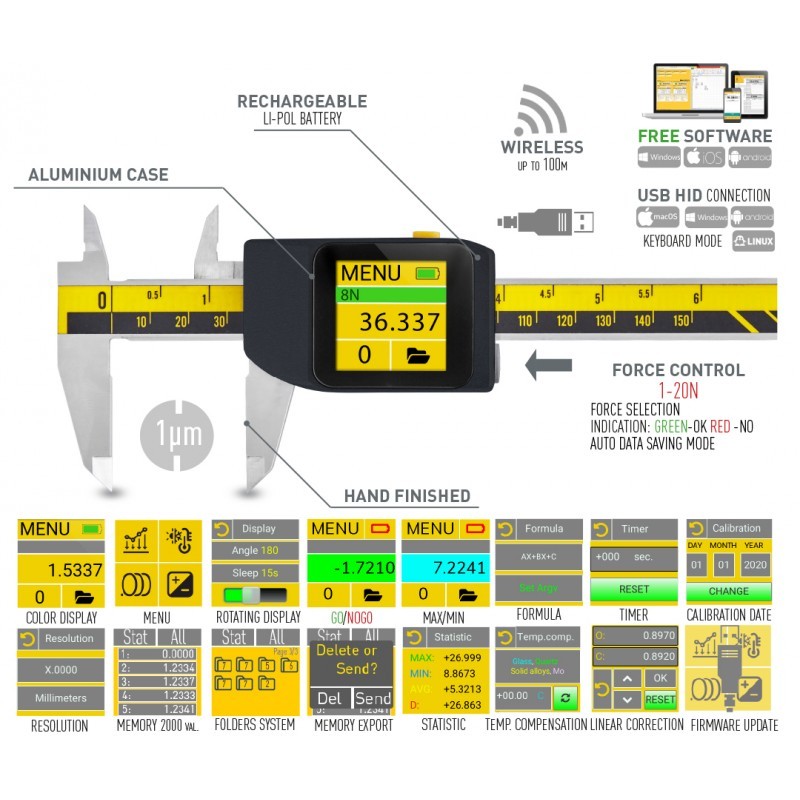

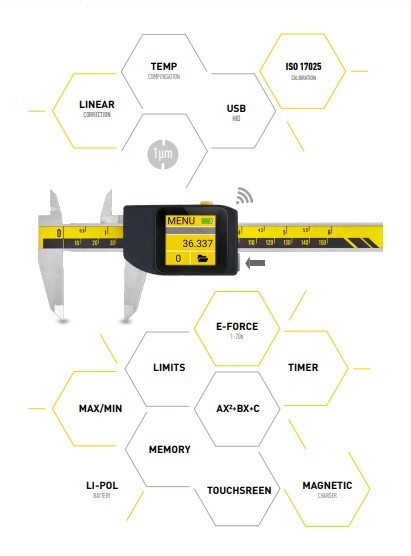

Computerized MICS measuring system of caliper has such functions:
-internal memory with statistics mode

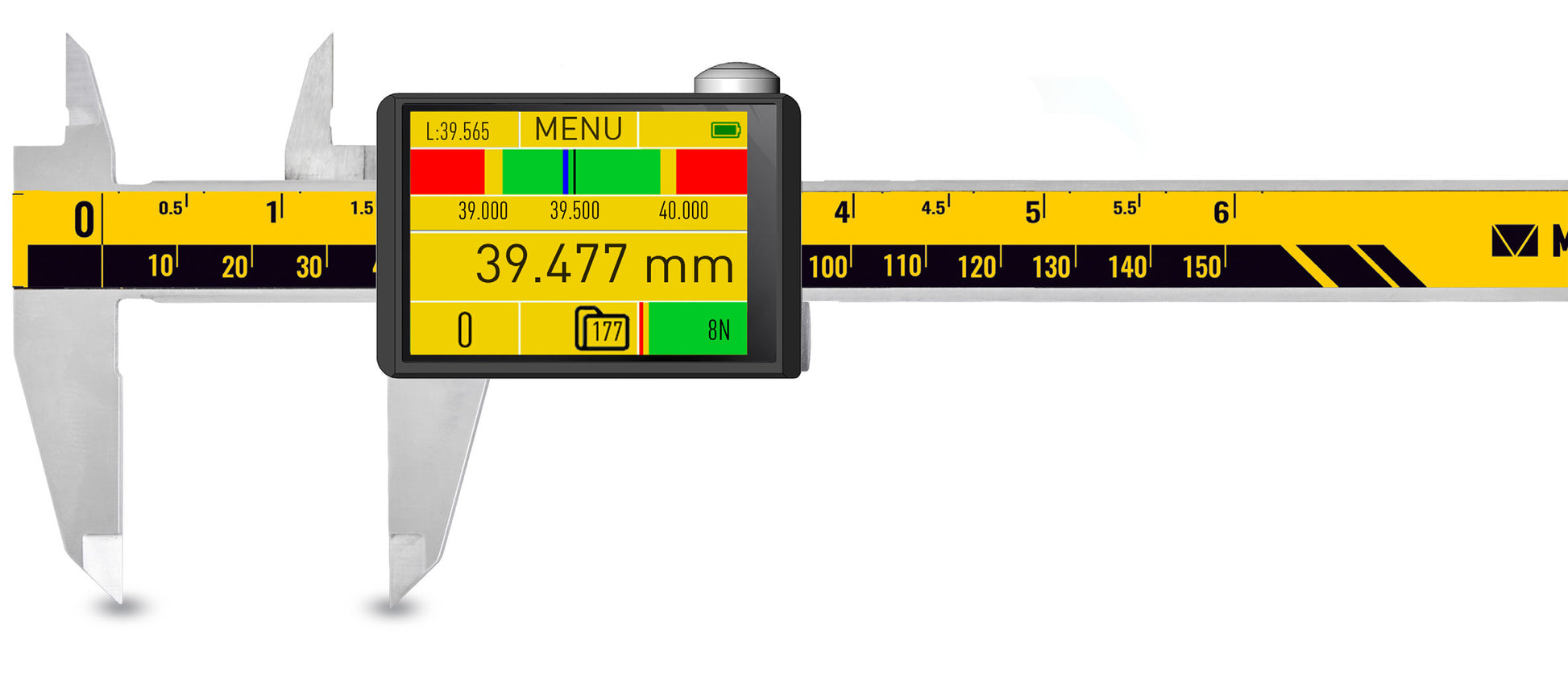

-Color Go/NoGo indication (limits)
-Peak function (Min/Max)
-Timer (reading to memory or data transfer)
-Formula – calculation indicator Ax2+Bx+C
-Resolution selection
-mm/inch selection
-Temperature compensation
-Mathematical error compensation
-Wireless data transfer to Windows, iOS, Android devices
-USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
-Built in rechargeable  Li-Pol battery with magnetic charger
-Color hi-res display 1,54 inch with Touchscreen.

MICROTECH WIRELESS calipers have 3 data transfer modes:
• WIRELESS data transfer to MDS app (available app’s versions for Windows, Android, iOS, MacOS)  Link to MDS app’s

• WIRELESS HID mode direct to any device and app (like a keyboard)

• WIRELESS HID+MAC mode direct to any device and app (like a keyboard) with MAC address
