SET - 3-Point Internal Micrometers BIG DEPTH Sub-Micron COMPUTERIZED Wireless

Precision sub-micron computerized 3 point internal micrometers adapted to Industry 4.0

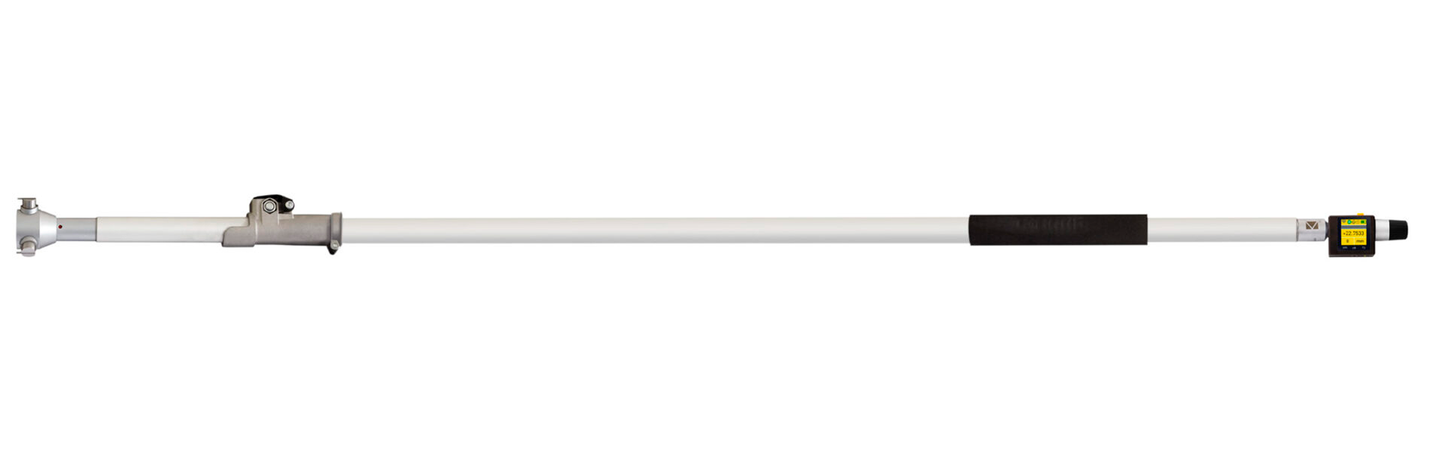

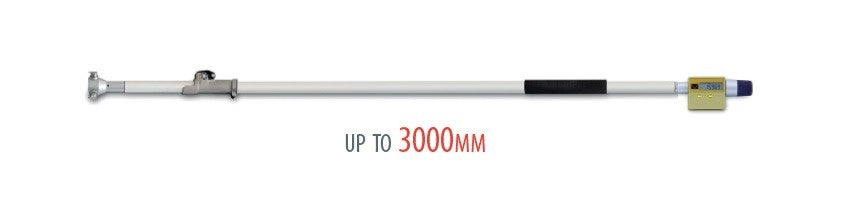

Measuring range up to 250mm (0-40 inch) and with depth up to 3000 mm with 0.1 micron resolution. These are the BIG DEPTH versions of our conventional 3-point micrometers!

See our individual micrometer listing for diameter range up to 1000mm!

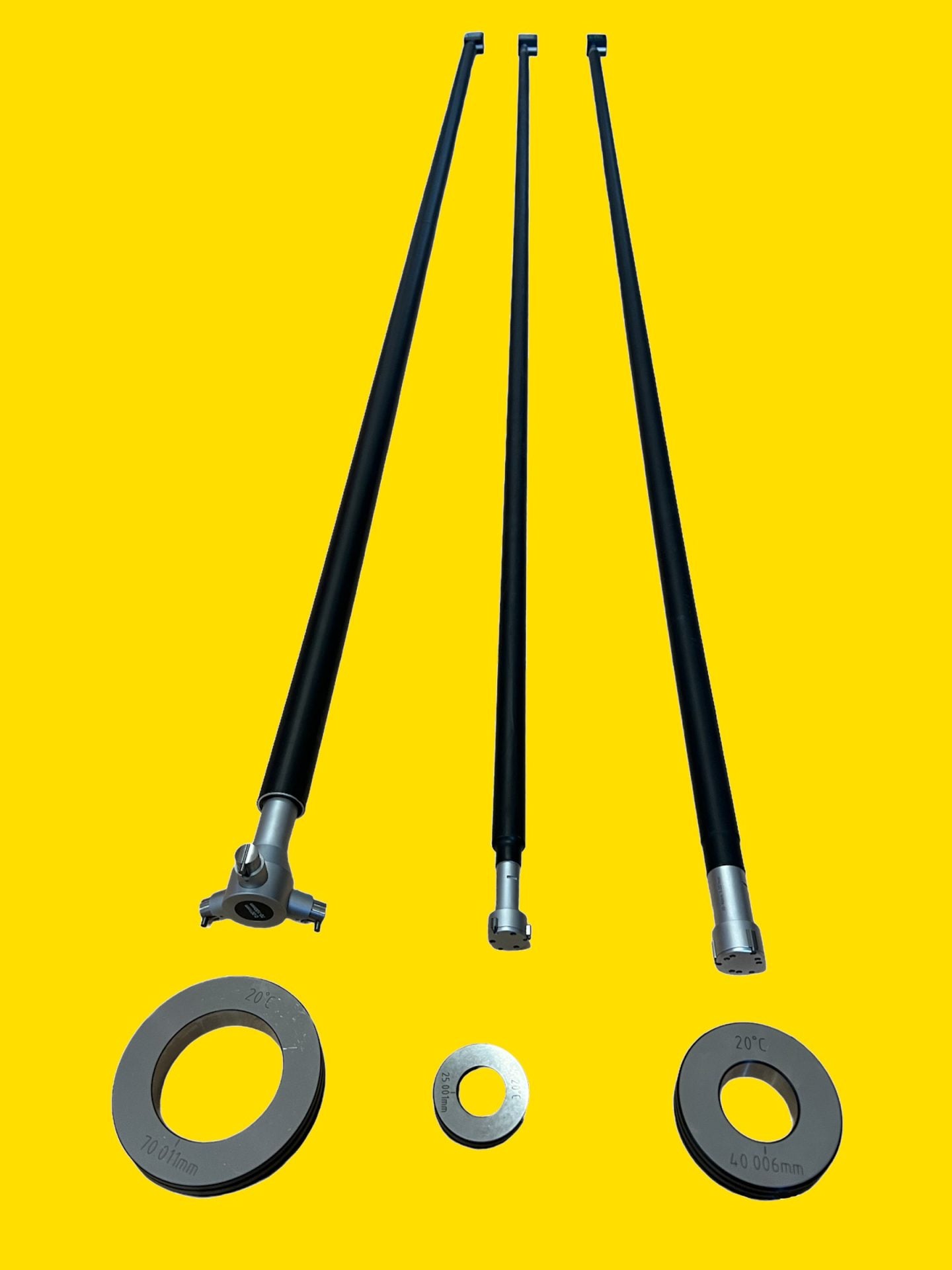

Setting Rings are included!

Save money buy purchased these sets of micrometers rather than individually, combined discount in addition to requiring fewer setting rings reduces cost.

Main advantage of this precision 3 point internal micrometer is the computerized measuring system from MICROTECH.

Accuracy

+/-4um 20-150mm x 1m Depth

+/-6um 20-150mm x 2m Depth

+/-8um 20-150mm x 3m Depth

+/-5um 150-250mm x 1m Depth

+/-7um 150-250mm x 2m Depth

+/-9um 150-250mm x 3m Depth

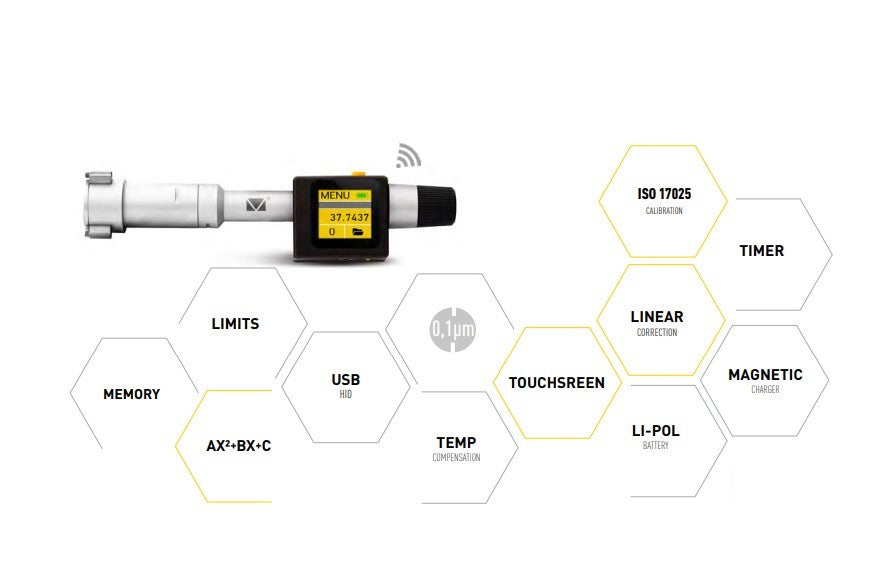

Computerized MICS measuring system internal micrometer has updated hi-res 1,54 inch screen and such functions:

– internal memory with statistic mode
– Color Go/NoGo indication (limits)
– Peak function (Min/Max)
– Timer (reading to memory or data transfer)
– Formula – calculation indicator Ax2+Bx+C
– Resolution selection (0,1 / 1/ 10 microns)
-mm/inch selection
– Temperature compensation
– Mathematical error compensation
– Wireless data transfer to Windows, iOS, Android devices
– USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
– Built in rechargeable  Li-Pol battery with magnetic charger
– Color hi-res display 1,44 inch with Touchscreen.

For micrometers 200-300mm and above, anvils are supplied as modular kits.

MICROTECH internal micrometers pass metrological control in an accredited ISO17025 metrological laboratory.
