3-Point Internal Micrometers BIG DEPTH Sub-Micron COMPUTERIZED Wireless

Precision sub-micron computerized 3 point internal micrometers adapted to Industry 4.0

Measuring range up to 1000mm (0-40 inch) and with depth up to 3000 mm with 0.1 micron resolution. These are the BIG DEPTH versions of our conventional 3-point micrometers!

Setting Rings are included up to the 150-250mm Micrometer! Inquire if you need setting rings above this.

Main advantage of this precision 3 point internal micrometer is the computerized measuring system from MICROTECH.

Accuracy

+/-4um 20-150mm x 1m Depth

+/-6um 20-150mm x 2m Depth

+/-8um 20-150mm x 3m Depth

+/-5um 150-250mm x 1m Depth

+/-7um 150-250mm x 2m Depth

+/-9um 150-250mm x 3m Depth

+/-6um 200-300mm x 1m Depth

+/-8um 200-300mm x 2m Depth

+/-9um 200-300mm x 3m Depth

+/-11um 200-1000mm x 2m Depth

+/-14um 200-1000mm x 3m Depth

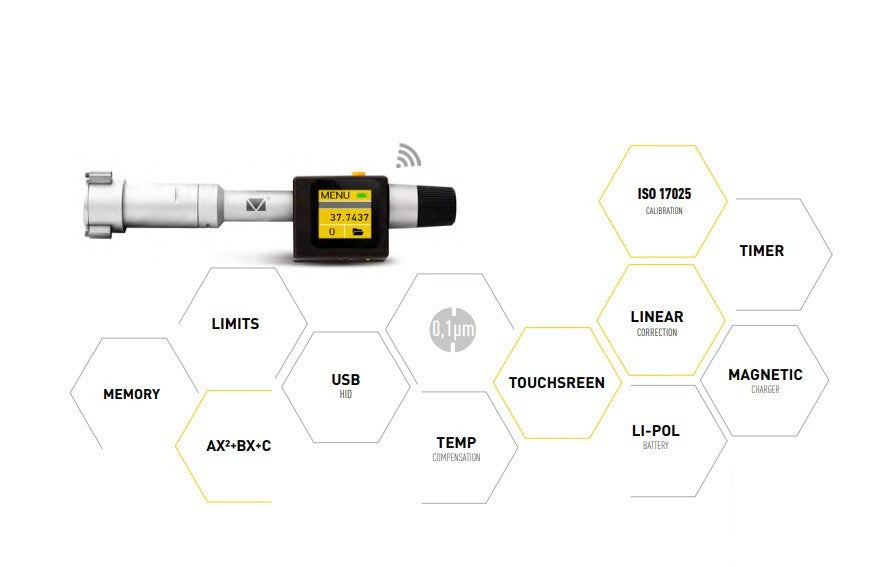

Computerized MICS measuring system internal micrometer has updated hi-res 1,54 inch screen and such functions:

– internal memory with statistic mode
– Color Go/NoGo indication (limits)
– Peak function (Min/Max)
– Timer (reading to memory or data transfer)
– Formula – calculation indicator Ax2+Bx+C
– Resolution selection (0,1 / 1/ 10 microns)
-mm/inch selection
– Temperature compensation
– Mathematical error compensation
– Wireless data transfer to Windows, iOS, Android devices
– USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)
– Built in rechargeable  Li-Pol battery with magnetic charger
– Color hi-res display 1,44 inch with Touchscreen.

For micrometers 200-300mm and above, anvils are supplied as modular kits.

MICROTECH internal micrometers pass metrological control in an accredited ISO17025 metrological laboratory.
